Home > Blog > Installation Instructions for Electromagnetic Flowmeters

Installation Instructions for Electromagnetic Flowmeters

Correct installation of Magnetic flowmeter can ensure accurate flow rate measurement.

Are you ready to install an electromagnetic flowmeter? Then this electromagnetic flowmeter installation instructions are exactly what you need. The magnetic flowmeter installation instructions here apply to magnetic flowmeters supplied by Sino-Inst. Made in China. If you have any questions about the measurement and installation of electromagnetic flow meters, please feel free to contact us.

RFQ

A Magnetic flow meter, also called electromagnetic flow meter, mag flow meter, or magmeters. A magnetic flow meter is a volumetric flow meter that works with principle of magnetic technology. Magnetic flow meters do not have any moving parts. An electromagnetic flowmeter consists of two parts: Electrode (sensor) and Transmitter. Installation types of magmeters could be: Compact, remote, insertion.

The electromagnetic flowmeter is mainly used to measure the flow of conductive media with good fluidity. The electromagnetic flowmeter is divided into a insert type and a pipeline type. Pipeline and insert electromagnetic flowmeters have the same amount of installation requirements.

Installation steps of electromagnetic flowmeter

The installation procedure of the electromagnetic flowmeter is simple.

Select the correct installation location.
Installation inspection. After installation, check whether the pipeline is installed correctly and whether the connections are reliable, especially the inspection of the ground wire.
Power on to warm up. After the electromagnetic flowmeter is powered on and warmed up for 20 minutes, the electromagnetic flowmeter can normally measure normally.
Zero tracking. In order to maintain the accuracy of the electromagnetic flowmeter, zero tracking is required. If the measuring tube of the electromagnetic flowmeter is filled with a medium, zero point calibration can be performed and then saved (confirmed).

However, you need to know more if you want to install the electromagnetic flowmeter correctly.

Basic knowledge of electromagnetic flowmeter installation

Select straight sections filled with liquid. Such as the vertical section of the pipeline (the flow direction is preferred from bottom to top) or the horizontal pipeline filled with liquid (the lowest point in the entire pipeline is preferred). During the installation and measurement process, non-full pipe conditions must not occur.

The measurement position should be selected at a position greater than 5D upstream and a 3D straight pipe section downstream. The measurement point should be selected as far away as possible from pumps, valves and other equipment. Avoid interference with the measurement. The measurement point should be selected as far away as possible from high-power radio stations and strong magnetic field interference sources.

Requirements for the installation environment

The electromagnetic flowmeter should be installed in a place where the temperature changes greatly or the device is exposed to high temperature radiation. If installation is necessary, measures must be taken for heat insulation and ventilation;
The electromagnetic flowmeter is best installed indoors. If it must be installed outdoors. Avoid rainwater pouring, flooding and sun exposure. Must have moisture and sun protection measures;
The flowmeter, especially the flowmeter with intelligent liquid crystal display screen, should be installed in a location that avoids direct sunlight. The ambient temperature should be between 5°C and 55°C .
The electromagnetic flowmeter should be avoided in the environment containing corrosive gas. When installation is necessary, ventilation measures must be taken.
In order to facilitate the installation, maintenance and maintenance, ample installation space is required around the flowmeter;
The installation place of the electromagnetic flowmeter should avoid magnetic fields and strong vibration sources. If the pipeline has a large vibration, there should be fixed pipeline supports on both sides of the flowmeter. Install the flowmeter in a place without strong electromagnetic field radiation. Avoid devices such as electric motors, transformers, frequency converters, etc. that are likely to cause electromagnetic interference. The measuring principle of the flow meter is based on Faraday’s law of electromagnetic induction. The original signal it generates is very weak, less than millivolts. If there is strong electromagnetic field radiation near the flowmeter, it will affect the accuracy of the measurement and may not even work properly.

Length of straight pipe. Be careful to avoid eddy current generating components, such as various valves, elbows, bypasses, etc. Try to extend the straight pipe section upstream and downstream of the flow meter. Install rectifiers if necessary. Make sure that the upstream straight pipe section of the flowmeter is more than 5 DN (measurement pipe diameter), and the downstream is more than 2 DN.
The conductivity of the liquid must be uniform and stable. Do not install the flow meter in a place where the conductivity of the measured fluid is extremely uneven. If a different medium is injected upstream, it will lead to uneven conductivity and affect the measurement. In this case, it is recommended to move the injection port downstream. If it must be injected upstream, it should be kept as far away from the flow meter as possible. Generally, it is better to keep a distance of more than 20 DN to ensure that the liquid is fully mixed uniformly.
Keep the electrode axis level. The measuring electrode plane must be level. This prevents short-time insulation between the two electrodes due to air bubbles.
No air bubbles. Ensure that no air bubbles are generated when the flowmeter is installed in the pipeline design.
The pipeline of the flowmeter is full. The flowmeter can be installed horizontally, vertically and obliquely. However, the pipeline structure should ensure that the measuring tube is always filled with liquid (full tube). When designing the pipeline, pay attention to ensure that there are no air bubbles in the measuring pipe section, otherwise it will cause unstable measurement and excessive deviation.

Installation pipe section of electromagnetic flowmeter

Requirements for straight pipe sections of electromagnetic flowmeters:

The electromagnetic flowmeter must be installed horizontally on the pipeline (the pipeline is inclined within 50). When installing, the flowmeter shaft Verabar flowmeter line should be concentric with the pipeline axis. The flow must be consistent. The length of the upstream pipe of the electromagnetic flowmeter shall have a straight pipe section of equal diameter not less than 2D. If the installation site allows enough, it is recommended that the upstream straight pipe section is 20D and the downstream is 5D.

Upstream Disturbance	Min Upstream (D)	Min Downstream (D)
Single 90° elbow	5D	2D
Two 90° elbows (same plane)	10D	2D
Two 90° elbows (different planes)	15D	2D
Reducer/Expander	5D	2D
Partially open valve	10D	2D
Pump discharge	10D	2D

Requirements for piping of electromagnetic flowmeter:

The inside diameter of the upstream and downstream piping of the flowmeter installation point is the same as the inside diameter of the flowmeter.

Requirements for the bypass pipe of the electromagnetic flowmeter:

In order to ensure that the normal use of the medium is not affected during the maintenance of the flow meter, a shut-off valve (cut-off valve) should be installed on the front and rear pipelines of the flow meter. At the same time, a bypass pipeline should be provided. The flow control valve should be installed downstream of the flow meter. When the flow meter is used, the stop valve installed upstream must be fully opened. Avoid unstable flow in the upstream part of the fluid.

Installation Method

The installation methods of electromagnetic flowmeters include flanges, clamps, and threads. But the commonly used installation method is flange installation. Points to note during installation.

It should be installed at the lower part of the horizontal pipeline and vertically upwards, avoiding the installation at the highest point of the pipeline and vertically downwards;
It should be installed on the rise of the pipeline;
Install in the open discharge pipeline, it should be installed in the lower part of the pipeline;
If the pipe drop exceeds 5m, install an exhaust valve downstream of the sensor;
Control and shut-off valves should be installed downstream of the sensor. It should not be installed upstream of the sensor;
The sensor must not be installed at the inlet and outlet of the pump, it should be installed at the outlet of the pump.
The installation position of the electromagnetic flowmeter should be installed according to the actual needs of the site, but the electrode axis must be installed horizontally.
The electromagnetic measuring tube must be completely filled with the pipe section during the working time on site.
The flow direction of the measured medium should be consistent with the direction of the arrow on the electromagnetic flowmeter.
If the measured medium contains solid particles or slurry, it is recommended to install it vertically (flowing from bottom to top). Avoid depositing solid particles in the measuring tube of the flow meter.

Installation requirements for insert electromagnetic flowmeters

Requirements for straight pipe sections. Inlet / exit straight pipe section: the inlet should be ≥10 × DN; the outlet should be ≥5 × DN
Requirements for grounding points. In order to make the meter work reliably and improve the measurement accuracy, it should not be disturbed by external parasitic potentials / the sensor should be well grounded. Grounding resistance is less than 10. (If the metal pipeline is well grounded, no special grounding device is required)
Insert the electromagnetic flowmeter according to the situation of the pipeline. Where continuous flow loading or unloading is required or medium is not allowed to overflow, a ball valve must be installed. That is, a insert electromagnetic flowmeter with a ball valve structure is selected.
Make a hole diameter of 50 in the pipe and prepare to weld the welded pipe to the hole in the pipe. Simple installation of insert electromagnetic flowmeter. Can flow continuously. With pressure openings on site. With absolute installation advantages and price advantages.
Flow detection is only related to the insertion depth. Therefore, the flowmeter has wide versatility and strong interchangeability. One model is suitable for fluid measurement requirements of various specifications of pipelines.

Precautions

Do not lift the rod or rope through the flowmeter measurement pipeline. Because the measuring tube lining is damaged, the flowmeter will be scrapped.For flowmeters above DN80, do not hold the converter or junction box of the flowmeter by hand or rope. Because the material of the converter or junction box is a relatively brittle aluminum alloy, it cannot bear a large weight. During storage, transportation, and installation of the flowmeter, care must be taken to protect the lining of the flow sensor from damage.

Featured Magnetic flow meters

SI-3104 split-type-magnetic-flow-meter — **SI-3104 Split Type Magnetic Flow Meter**

**ZD10 Series Small Electromagnetic Flow Meter**

**SI-3107 Insertion magnetic flow meter**

**Electromagnetic High Pressure Flowmeter | 0.6MPa-1.6MPa-6.3MPa-16MPa-25MPa-35MPa-42MPa**

**SI-3108 Stainless Steel Electromagnetic Flow Meter**

**Electromagnetic Heat Energy Meter for Heating and Cooling**

**Electromagnetic Partially Filled Pipe Flow Meter**

Technical Support

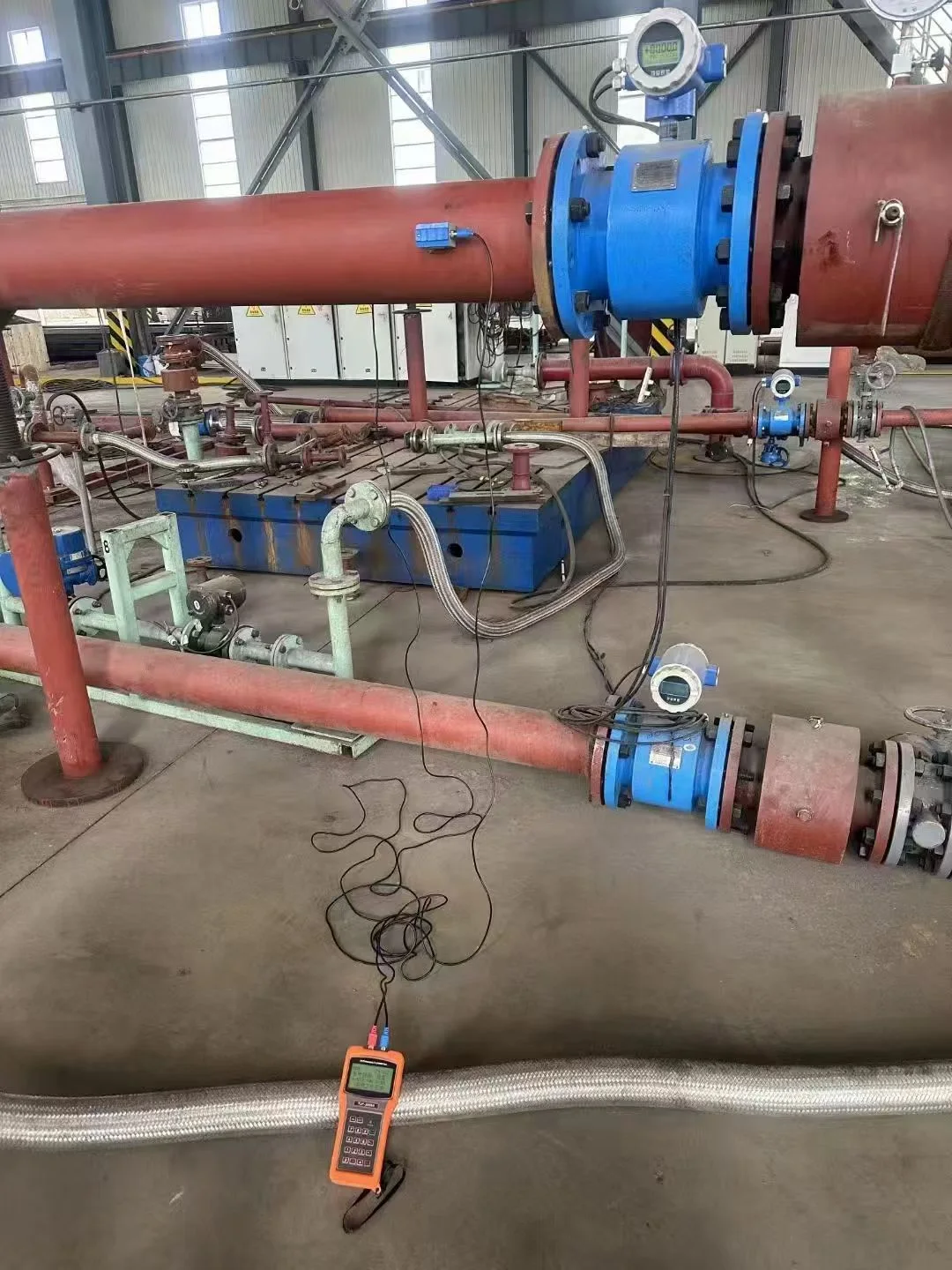

Flowmeter Calibration & Recalibration

Flowmeter Calibration & Recalibration are performed in accordance with various flowmeter verification procedures. For current flowmeters, the standard throttling device does not need to be tested. The remaining flowmeters are almost always tested when they leave the factory.
The flowmeter has been verified according to the Calibration procedures before leaving the factory.

Vortex Flowmeter Technology

Best Technology Guide to Vortex Flow Meters.
Vortex flow meters are suitable for measuring steam as well as a variety of liquids and gases. As fluid moves across a vortex meter shedder bar, vortices form. The frequency of the vortices shedding is proportional to the fluid velocity.Even for the steam flow rate, Vortex flow meters are the perfect choice. Pressure and Temperature compensation ensure measurement accuracy. When measure steam or gas flow in pipes with variable operating pressure and temperature.

Water Flow Measurement Solution-Ultrasonic Flowmeter

Ultrasonic flow meters are based on the speed at which ultrasonic waves are transmitted by a flowing medium. A flowmeter developed by the sum of the average velocity of the measured medium. And the vector of sound waves moving in a stationary medium. Ultrasonic flow meters are non-intrusive flow meters. .

How does a magnetic flowmeter work?

Magnetic flow meters use the principle of Faraday’s Law of Electromagnetic Induction to measure the flow rate of liquid in a pipe. In the magnetic flowmeter pipe parts, a magnetic field is generated, and channeled into the liquid flowing through the pipe. Faraday’s Law states that the voltage generated is proportional to the movement of the flowing liquid. A conductor moving through a magnetic field produces an electric signal within the conductor. And the singal is proportional to the velocity of the water moving through the field. As fluid flows through the magnetic field, conductive particles in the fluid create changes. This variation is used to measure and calculate the velocity of water flow through the pipe. When the fluid moves faster, more voltage is generated. The electronic transmitter processes the voltage signal to determine liquid flow.

More Technology Guide to Magnetic Flow Meters.

Magnetic Flow Meter Construction

The structure of the electromagnetic flowmeter is:

A magnetic circuit system,a measurement conduit,an electrode,a housing,a lining,and a converter(transmitter).

Magnetic circuit system: To generate a uniform DC or AC magnetic field.

Measuring catheter: To allow the measured conductive liquid to pass through.

Electrode: To lead out an induced potential signal that is proportional to the measurement.

Housing: Made of ferromagnetic material. It is the outer cover of the excitation coil of the distribution system, and isolates the interference of external magnetic field.

Lining: On the inside of the measuring tube and the sealing surface of the flange. There is a complete layer of electrically insulating lining. It contacts the liquid to be measured. And To increase the corrosion resistance of the measuring tube and prevent the induced potential from being short-circuited by the metal measuring tube wall. Mostly are polytetrafluoroethylene plastics, ceramics. That are resistant to corrosion, high temperature and wear.

Converter: Also called a transmitter. To convert the induced potential signal detected by the electrode into a unified standard DC signal, like 4-20mA.

For Coriolis mass flow meter installation, see our dedicated guide on the Coriolis mass flow meter technology and installation.

FAQ

In short, installing an electromagnetic flow meter mainly involves 5 steps: selecting a location → confirming the straight pipe section → aligning and fixing the flange → establishing independent grounding → wiring, powering on, and zeroing.

The most important thing is to ensure a full tank and a straight pipe section of 5D upstream and 2D downstream. Detailed steps can be found in this article.

For insertion-type electromagnetic flow meters, there is an additional step: calculate the insertion depth based on the pipe diameter (usually 1/2 or 1/8 of the pipe diameter).

The 5D/2D rule means that at least five times the pipe’s inner diameter should be maintained upstream of the flow sensor installation location, and at least twice the pipe’s inner diameter should be maintained downstream. D = nominal pipe inner diameter.

Of course, this is just a simplified requirement. If the pipeline is complex, such as with 90° bends, regulating valves, pump outlets, etc., the specific requirements need to be determined based on the actual situation. Refer to the requirements above.

Standard installation requirements for magnetic flow meters: 5D upstream, 2D downstream.

Specific requirements may vary depending on the type of upstream disturbance source: 5D for a single elbow, 10D for two elbows on the same plane, 15D for two elbows on different planes, 10D for regulating valves, and 10D or more for pump outlets. The downstream length should always be 2D. These figures comply with ISO 6817 and industry best practices.

Yes, but the fluid must flow from bottom to top. This ensures the measuring tube is always filled with medium, preventing empty tubes or air bubbles from affecting the measurement.

Electromagnetic flow meters must be independently grounded, with a grounding resistance ≤4Ω, using a ≥4 mm² copper core cable. For metal pipes, use jumper wires to connect the sensor housing to the flanges at both ends; for lined pipes or non-metallic pipes (PVC, FRP, cement pipes), grounding rings or grounding electrodes must be installed at both ends of the sensor. Sharing a ground with frequency converters, motors, or welding machines is strictly prohibited—this will introduce 50/60Hz interference, causing reading fluctuations and zero-point drift.

Standard electromagnetic flow meters require a medium conductivity ≥5 μS/cm, while low conductivity models can measure ≥0.05 μS/cm.

Tap water, industrial wastewater, acid and alkali solutions, milk, and pulp all far exceed this value and are typical applicable media. Pure water (unionized water), oil, and organic solvents (benzene, toluene, alcohol) have too low conductivity and are unsuitable. The conductivity of the medium must be measured before selection; do not rely solely on the medium name.

The standard maximum distance for a split-type electromagnetic flowmeter is 100 meters, but our provided double-shielded signal cable must be used. Ordinary cables or network cables cannot be substituted.

For distances exceeding 100 meters, a customized long-distance, low-noise model is required (Sino-Inst supports up to 300 meters). Signal cables and power cables must be routed separately, with a spacing ≥30 cm, and should not run parallel to inverter cables.

The electromagnetic flowmeter signal is weak, only 2.5~8mv at full scale. Only a few microvolts when the flow rate is very small, and slight disturbance will affect the measurement accuracy.So, the transmitter casing, shielded wire, measuring conduit and transmitter of the pipes. They must be grounded, and the grounding points should be set separately. They must not be connected to common ground lines such as motors and electrical appliances or to the upper and lower water pipes.The converter part has been grounded through the cable, so do not ground again to avoid interference caused by different ground potentials.
