TSL300 series radar level sensors use 80G high-frequency sensors. They have strong anti-interference properties. Can be used normally for foaming and stirring floating objects. The casing is made of plastic. The probe and circuit board are both developed and produced by our company. Provide you with the most cost-effective liquid level measurement solution!
Features
- Brand new appearance and sensor design. Highly waterproof and sunproof. Designed to resist interference waveforms caused by various interferences (such as stirring, foam, floating objects, volatilization).
- The circuit design starts with the power supply part and uses high-quality power modules. The components are imported with high stability and reliability. They can completely replace the same type of foreign imported instruments.
- The patented sonic intelligence technology software can perform intelligent echo analysis. No debugging or other special features are required.
- Special steps. This technology has the functions of dynamic thinking and dynamic analysis.
- Our company has sonic intelligence patented technology. The accuracy of the instrument is greatly improved, and the liquid level accuracy reaches 0.25%;
- This instrument is a non-contact instrument and does not come into direct contact with liquid, so the failure rate is low.
- The instrument provides a variety of installation methods, and users can calibrate the instrument through the manual.
- All output and input lines of the instrument are protected against lightning and short circuit.
Radar Level Sensors-80G-Technical Parameters
| Measuring range: | 10m, 20m (default), 30m, 60m, 80m, 120m; |
| Blind area: | 0.07~0.5m; |
| Measurement accuracy: | ±3mm or 3%, whichever is greater (standard conditions); |
| Resolution: | 1mm; |
| Pressure: | normal pressure |
| Working temperature: | -20℃ ~ 80℃ |
| Output signal: | 4~20mA/RS485 communication (optional: relay output, voltage output) |
| Display: | LCD display with highlighted characters (switchable between Chinese and English) |
| Integral type protection grade: | IP67 |
| Split type protection level: | host IP65 sensor IP67 |
| Power supply voltage: | DC12V; DC24V; AC220V (selected according to on-site power supply) |
| Lightning protection device; | Built-in |
Order Guide

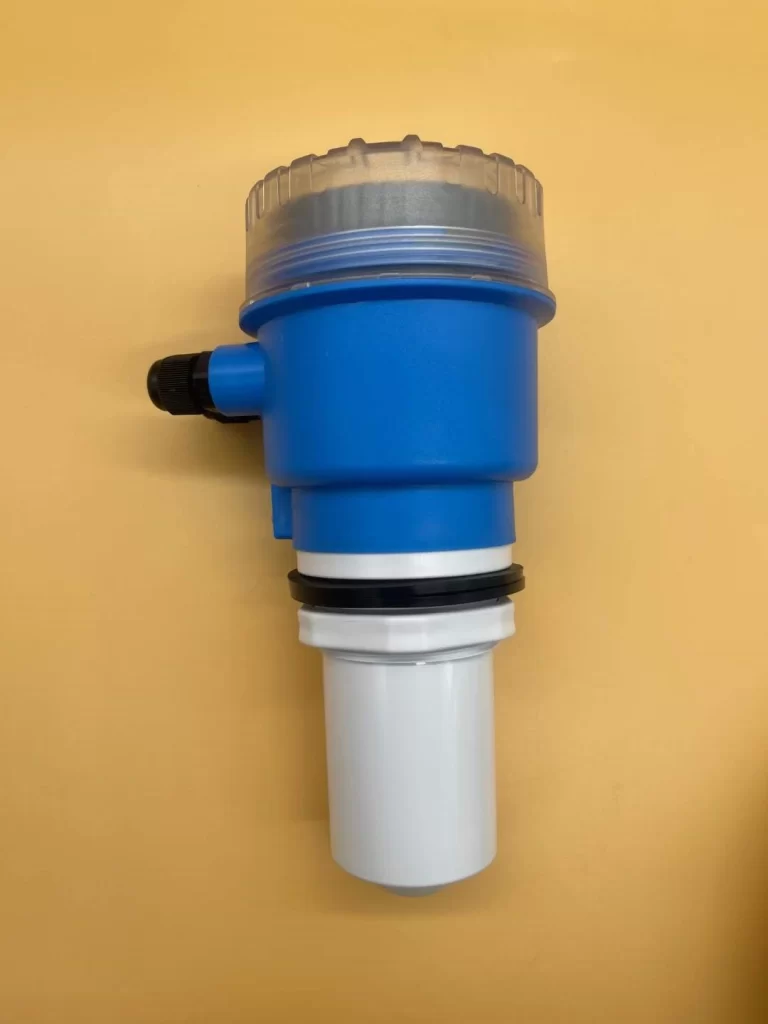

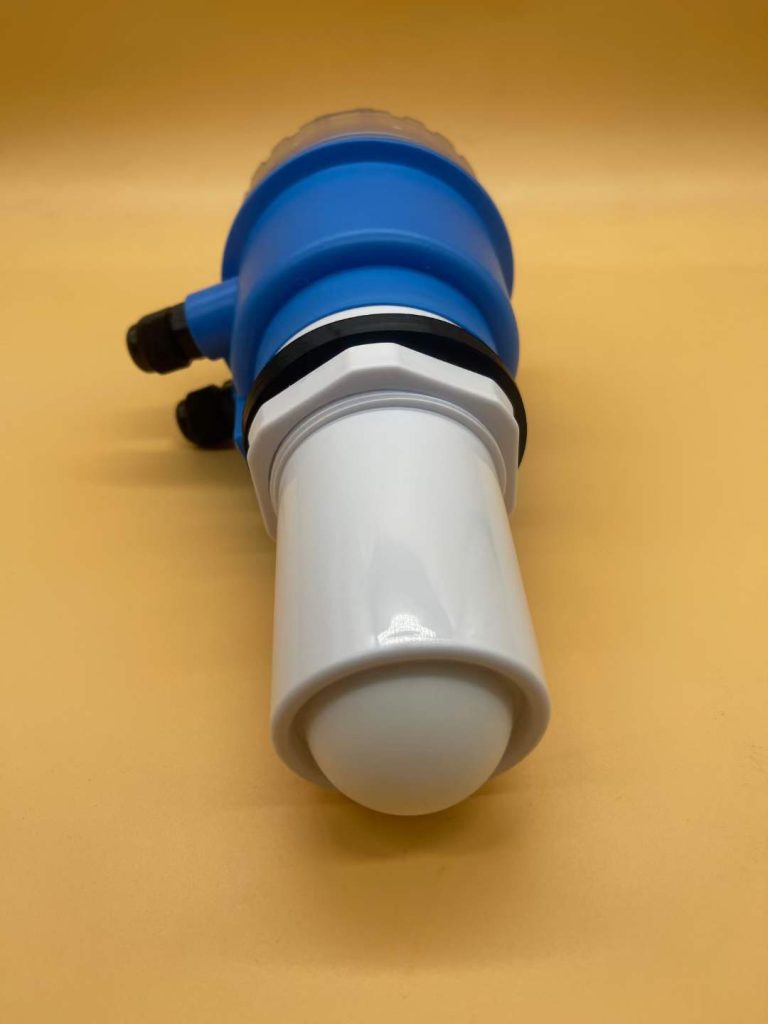

| TSL300DN- | Integrated type radar level sensor | ||||||

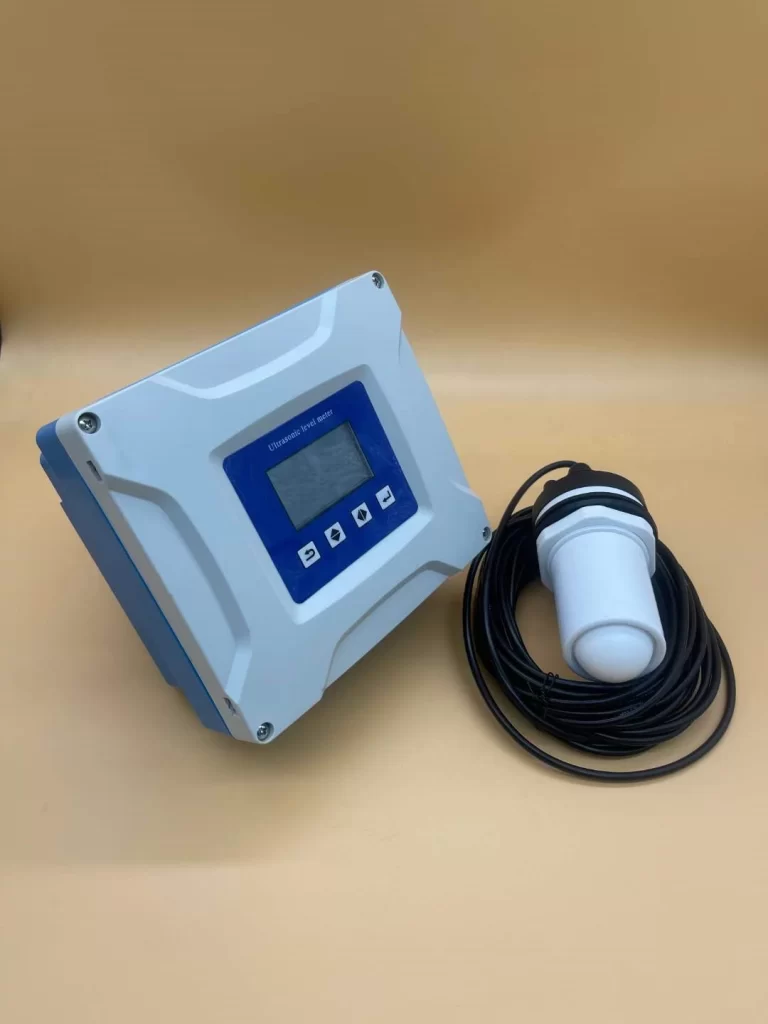

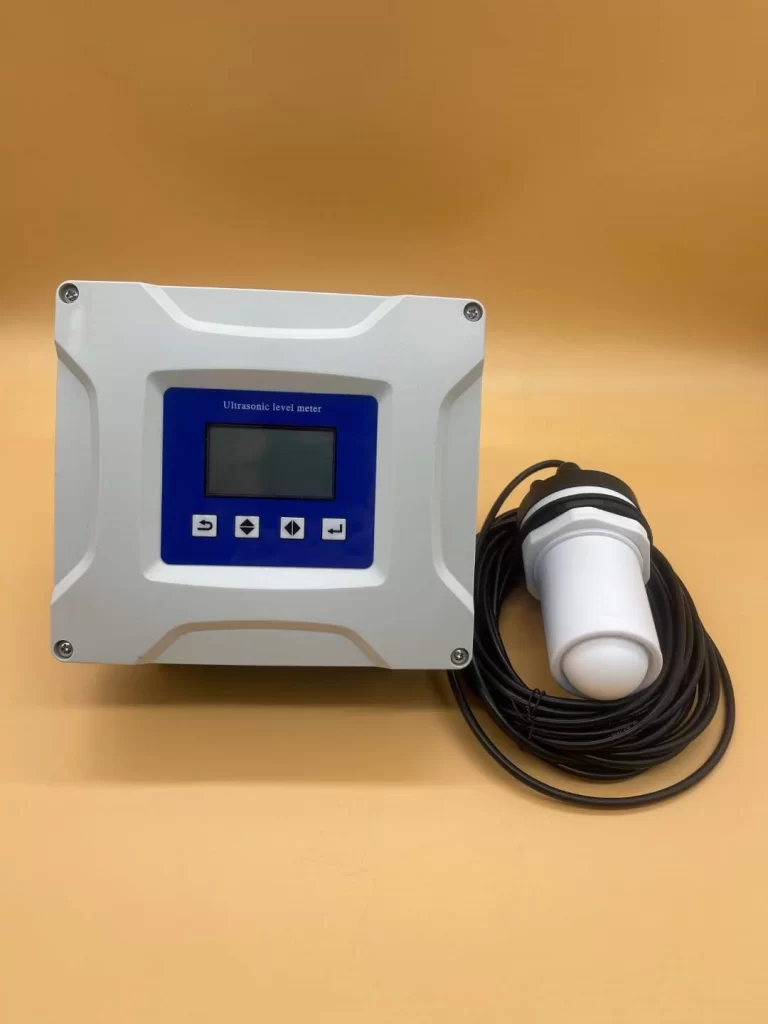

| TSL300DNF- | Split type radar level sensor | ||||||
| Functional category (Default four-wire system) | T | Two-wire system | |||||
| S | three-wire system | ||||||
| F | four wire system | ||||||
| Power supply (Default DC24V) | D1 | DC12V | |||||
| D2 | DC24V | ||||||
| A2 | AC220V | ||||||
| Output signal (Default 4-20mA/RS485 communication) | N | none | |||||
| V | 0-10V | ||||||
| K2 | Two channels relay | ||||||
| A2 | Two channels 4-20mA (split type optional) | ||||||
| K4 | Four channels relay (split type optional) | ||||||
| Sensor material (Default ABS material) | AB | Engineering plastics (ABS) | |||||
| PE | Polyethylene (PE) | ||||||
| PT | Polytetrafluoroethylene (PTFE) | ||||||
| Connection method (Default G2 thread) | G2 | G2 thread | |||||
| T0 | Custom size | ||||||
| Measuring range | -XX | 0-20m | |||||
| Selection example: | TSL300DN-FA2NABG2-20 | ||||||
More Non-Contacting Radar Level Measurement
- Difference Between Radar and Ultrasonic Level Transmitter
- Industrial Ultrasonic Level Transmitters | Non-contact Level Measurement
- Featured 5 Guided Wave Radar Level Transmitter Types
- Guided Wave Radar Level Transmitter Installation Guide and Troubleshooting
- Difference Between Radar and Guided Wave Radar Level Transmitter
- Hydrostatic Level Measurement-Liquid Level Measurement with Pressure Sensors
- Typical Ultrasonic Level Sensor Applications and Advantages
- Different Diesel Level Sensors for Diesel Tank Level Measurement
What are the pros and cons of radar level sensor?
Advantages of Radar level sensor:
- Radar level sensor has very strong penetrating power and is almost not affected by the measurement medium.
- The radar level gauge can directly reach the surface of the measurement medium through surface impurities such as dust, steam, foam, and attachments.
- Radar level sensor is not affected by the shape of the tank, and can measure liquid level regardless of whether it is spherical, cylindrical, horizontal, etc.
- High accuracy and small blind zone: Sino-Inst’s Radar level sensor has a measurement accuracy of up to +1mm.
- The smaller beam angle makes the radar signal more focused. It is suitable for measurement in various spaces. The extremely small beam angle can successfully avoid various obstacles and achieve accurate measurement.
- The measurement range is larger. The longest is up to 120 meters. And the signal will hardly weaken as the range increases.
- Maintenance is simple and requires almost no repairs. Radar level sensor has fault alarm and self-diagnosis functions, and can perform fault analysis based on the error code of the display module. Regular fault elimination makes maintenance and correction more convenient and accurate.
Disadvantages of Radar level sensor:
- Radar level sensors usually need to be connected to power;
- Radar level sensors are generally more expensive than other level sensors; of course, our TSL300 series radar level sensors can have a lower cost!
- The installation method is limited to top installation.
Radar level sensor uses radar technology for non-contact continuous liquid level measurement. Radar level indicators convert liquid level into an electrical signal. The level signal output can then be used by other instruments for monitoring or control. Liquids and solids are commonly measured using this measurement technique, for example: fly ash silos.
Sino-Inst manufactures and supplies various types of radar level sensors. Including high temperature, high pressure, anti-corrosion and other radar level meters. There is also our newly developed low-cost radar level sensor. It can better provide users with a more cost-effective liquid level measurement solution.
If you need non-contact liquid level measurement or have related technical questions, please contact our engineers!
