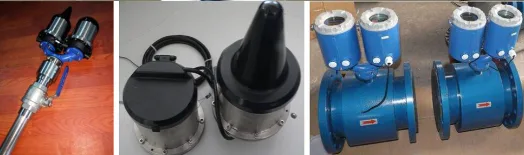

Electromagnetic Wireless Flow Meter

The wireless flow meter is a flow measurement instrument that combines the principles of electromagnetic induction and wireless communication technology. Its main function is to accurately measure the volumetric flow rate of conductive liquids and transmit the data to a server platform via GPRS/4G/NB-IoT/Lora and other wireless networks. Users can flexibly and conveniently view data and remotely configure parameters through browsers, mobile apps, and other methods.

Diameter	DN10～DN3000mm
Accuracy	0.5% ~ 2.0% of reading
Temp. range	-20～+150℃
Pressure	1.6 MPa Or customize pressure level
Flow rate	0.5～15 m/s
Straight pipe required	Up stream≥5DN, down stream≥3DN

RFQ More Flow Meters

Features
Specifications
Applications

Wireless Flow Meter Features

Ultra-low power consumption: Truly eliminates the need for battery replacement throughout the product’s lifespan;
Easy operation: Parameters can be easily configured via infrared remote control, magnetic pen, or LCD;
Multiple wireless communication methods: Includes mainstream wireless networks such as GPRS/4G/NB-IoT/LoRa, allowing users to choose according to their needs;
IP68 protection rating: waterproof, moisture-proof, and immersion-proof;
Standard SIM card included, eliminating the need for users to open the case, greatly ensuring waterproof performance;
Supports remote parameter configuration;
Powerful server backend processing capabilities, providing intuitive and convenient data query, analysis, and alarm prompts for various application scenarios; SIM card renewal management function;
Supports viewing data, remote parameter configuration, and firmware updates via browser, mobile app, etc.

Electromagnetic Wireless Flow Meter Specifications

Flow velocity measurement range	0.5～15 m/s
Measurement pipe diameter	DN10～DN200~DN3000
Accordance class	Class 1.0
Enclosure protection class	IP68
Detection and alarm parameters	Empty pipe alarm, excitation alarm, power alarm
Measurement parameters	Instantaneous flow rate, cumulative flow rate, pressure, real-time parameters
Recording parameters	Cumulative flow rate
Communication method	GPRS/4G/NB-IoT/LoRa wireless mode
Battery life	Sustainable operation for 3 years
Operating ambient temperature	-10℃～60℃
Operating ambient humidity	≤95%
Operating pressure	≤1.6 MPa or customized pressure rating

Featured Applications

The wireless remote transmission electromagnetic flow meter is designed specifically for the water industry.

Urban water supply, industrial water use, tap water industry, and municipal management.

Used for flow measurement throughout the entire process, from water treatment plant output, pipeline transmission, district metering areas (DMA), to customer billing.

Sewage treatment, wastewater treatment, etc.

This is the largest and most traditional application area for electromagnetic flow meters.

Municipal sewage treatment: Used to measure influent sewage, return sludge, chemical additive dosage, and treated effluent flow. It can handle media containing solid particles, fibers, and certain corrosive substances.

Industrial wastewater treatment: Measures wastewater discharged from various factories, even if the wastewater contains corrosive chemical components.

Agricultural irrigation water monitoring

Used for water metering in large-scale agricultural irrigation systems. Wireless remote transmission technology completely eliminates the constraints of cables. It can easily transmit data remotely across complex terrain, greatly reducing construction difficulty and costs, while avoiding damage to the agricultural environment.

Situations where power is unavailable

In many industries such as chemical, pharmaceutical, food, paper, and power, electromagnetic flow meters can be used to effectively monitor the flow of various conductive liquids, including acid and alkaline solutions, slurries, etc. In situations where power is unavailable, the wireless electromagnetic flow meter operates on battery power and transmits data remotely.
