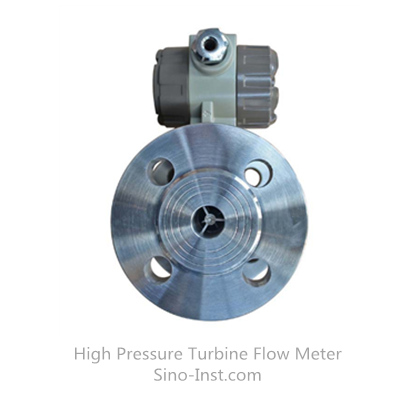

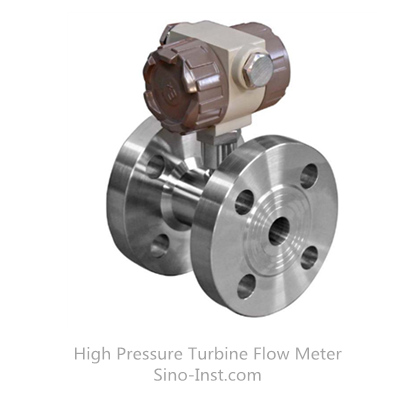

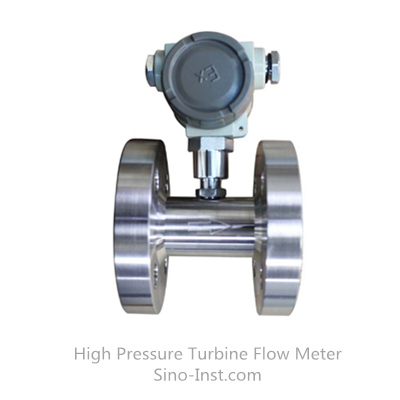

The High Pressure Turbine Flow Meter series is ideal for measuring high-pressure fluid flow, such as in hydraulic testing or chemical injection systems. Custom pressures up to 5800 psi are available. Available in sizes from DN4 to DN80, it supports a wide range of flow rates.
This high-pressure turbine flowmeter features an explosion-proof design and can display total flow, instantaneous flow, and percentage of full-scale flow.
Features
- High accuracy. Typical accuracy reaches ±1%R, ±0.5%R, and high-precision models can reach ±0.2%R.
- A wide range of specialized sensor types are available. These sensors can be designed to meet specific user needs, including low-temperature, high-temperature, sanitary, and sand mixing sensors.
- Provides wide flow ranges (10:1 to 100:1 turndown ranges available).
- One piece 316/316L S/S Construction for most pressures.
- For use with unique Hoffer high pressure 316/316L or carbon steel mating flange kits, supplied complete with SAE J429 Grade 8 high yield strength bolts and “O” rings.
- Sizes DN15 through DN300. Pressure ratings up to 40MPa.
Specifications
| Nominal diameter(mm) | Pipeline type:DN15~DN300 |
| Insertion type:DN300~DN2000 | |
| Accuracy grade | Pipeline type:±0.5%, ±1.0% |
| Insertion type:±1.5%, ±2.5% | |
| Environment temperature | -20~+50℃ |
| Medium temperature | Liquid: -20~+120℃ |
| Gas: -20~+80℃ | |
| Air pressure | 86~106KPa |
| Nominal pressure | 1.6MPa, 2.5MPa, 6.4MPa, 25MPa, 40MPa(Customizable) |
| Explosive-proof grade | ExdIIBT4 |
| Connection type | Thread, clamp, flange, insert |
| Output | (1) Pulse output, p-p value ensure by power supply |
| (2) 4~20mA two wire current output | |
| (3) Unit volume pulse and sensor original pulse output | |
| Power supply | 24VDC or 3.6V Battery |
Feature Application
High-pressure liquid turbine flowmeters are designed for high-pressure fluid applications such as hydraulic equipment, construction machinery, and the chemical industry. Common applications include:
- Process monitoring
- Consumption measurement
- Dosing
- Mixing
- Water
- Emulsifiers
- Additives
- Inhibitors
- Hydraulic/lubrication systems
- Oil/gas industry
- Laboratory equipment
- Test benches
Order Guide
In addition to our standard products, we also support customization. When ordering a high-pressure turbine flowmeter, please confirm the following parameters:
- Measuring medium
- Pipe diameter
- Flow range
- Pipe pressure
- Temperature
- Required accuracy
- Signal output
- Whether a local display is required
- Flange or thread specifications required.
More Flow Measurement Solutions
When it comes to high-pressure applications, choosing the right flow meter is necessary for checking accuracy, reliability, and safety.
High Pressure Flow Meters are perfect when measuring the flow of fluids under high pressures, such as in hydraulic testing. It is also perfect for chemical injection systems, as it withstands pressures up to 6.3MPA~42MPA and is available in a variety of different flow ranges.
This blog post will delve into the various types of high-pressure flow meters, including high-pressure gas meters, high-pressure water flow meters, and high-pressure rotameters, reflecting their features, applications, and considerations for selection and installation.

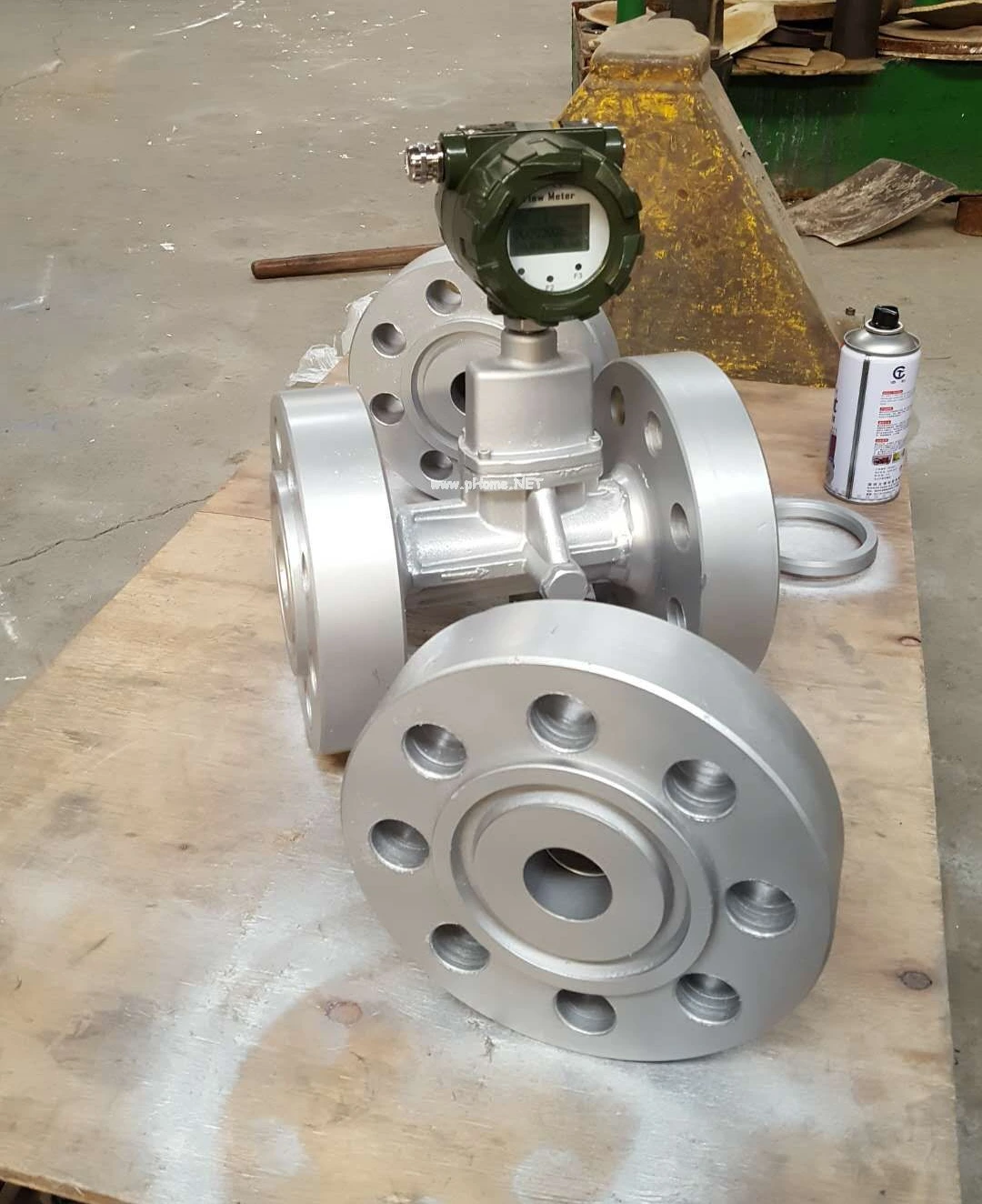

Guide for High Pressure Flow Meters – Industrial Liquid & Gas Measurement
More high pressure flow meters:
In the field of industrial fluid measurement, high-pressure turbine flowmeters, with their high precision and resistance to harsh operating conditions, have become essential equipment in the petroleum, chemical, and energy industries.
Sino-Inst’s HP series of high-pressure turbine flowmeters (HP stands for High Pressure Connection) are designed to measure continuous and discontinuous flows at very high operating pressures. They are primarily used for lubricating and non-lubricating media, and are particularly well-suited for low- and medium-viscosity fluids such as water, emulsions, additives, and inhibitors.
In addition to high-pressure turbine flowmeters, we also offer custom designs for high-pressure electromagnetic flowmeters, high-pressure gear flowmeters, and high-pressure mass flowmeters. Please feel free to contact us!
