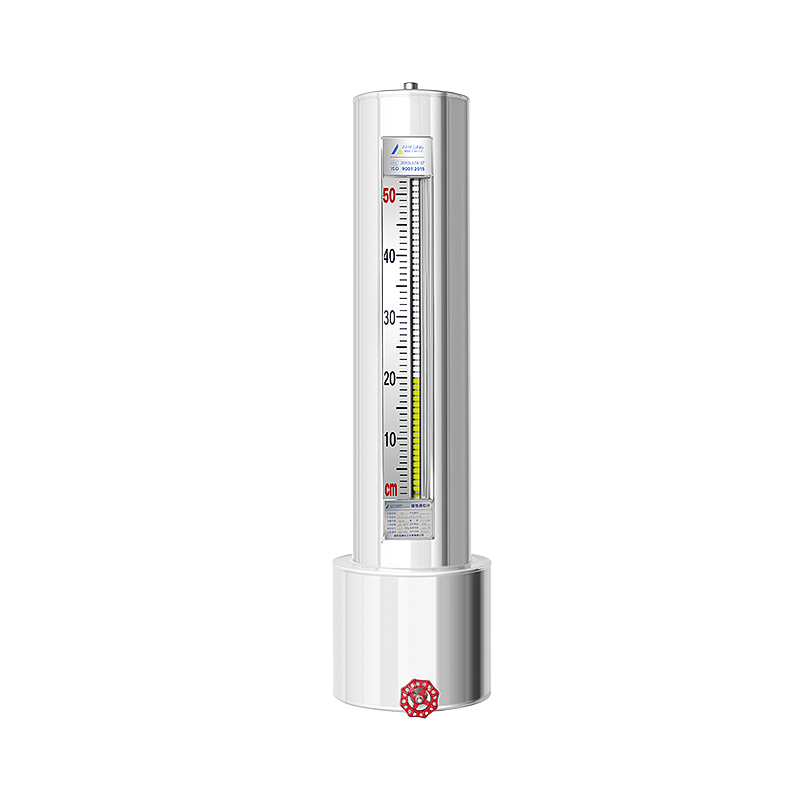

UHZ-C Cryogenic Magnetic Level Gauge is suitable for measuring liquids at low and ultra-low temperatures, with a minimum operating temperature of -196℃. The chamber utilizes mature cryogenic isolation technology, allowing the level gauge to operate normally in low-temperature environments for extended periods. It offers advantages such as frost-free surface, no blind spots during measurement, clear display, intuitive readings, and a large measurement range.
Features
Technical Parameters
| Parameter Items | Technical Specifications |
| Measuring Range | 300 to 6000mm |
| Medium Temperature | -196 to -20°C |
| Medium Density | ≥0.6 g/cm³ |
| Medium Viscosity | ≤ 0.02Pa·s |
| Tracking Speed | ≤ 0.08 m/s |
| Pressure Rating | ≤16MPa |
| Accuracy | ±5 mm, ±10 mm |
| Panel Type | Stainless Steel Vacuum |
| Connection Flange | DN20 / 25 / 32 / 40 / 50 / 65 / 80 / Others (Customizable) |
| Sealing Face | Raised Face / Flanged Face / Convex Face / Full Face / Ring Joint Face (RF / FM / M / FF / RTJ) |
| Wetted Material | 304/316L/321/Titanium/Others |
| Transmitter Output | Two-wire 4-20mA, DC 600Ω load + HART |
Featured Cryogenic Magnetic Level Gauge Applications
Cryogenic magnetic level gauges are primarily designed for measuring the levels of liquid media at extremely low temperatures, down to -196℃, such as liquid oxygen (-183℃), liquid nitrogen (-196℃), and liquid argon in storage tanks. Common applications include:
- Air Separation: Used to measure the levels of liquid oxygen (-183℃), liquid nitrogen (-196℃), and liquid argon in storage tanks.
- Liquefied Natural Gas (LNG): Used for level monitoring in LNG storage tanks, refueling stations, and tank trucks; operating temperatures are typically around -162℃.
- Cryogenic Reactions in Chemical Industry: Used to measure the levels of media such as liquid ethylene and liquid ammonia in certain chemical processes that require reactions at extremely low temperatures.
- Superconductivity and Scientific Research: Used in extremely low temperature environments such as liquid helium or liquid hydrogen (although these applications are more specialized).
