SI-3105 Battery Powered Electromagnetic Flow Meter

by

The battery powered electromagnetic flow meter uses a 3.6VDC battery for power, eliminating the need for an external power supply and ensuring reliable operation. The battery life can reach 3-6 years. It is widely used in outdoor and remote locations where mains power is unavailable. With an IP68 protection rating, it operates reliably without the need for additional protective measures.

Battery Powered Electromagnetic Flow Meter
Caliber/Diameter:DN6~DN3000
Battery:3.6VDC
Calibrated output signal:Pulse output proportional to volume flow rate
Wireless communication method:SRD, GPRS, CDMA
Battery operating time:3-6 years
Measurement range:0 to 12 m/s
Measured medium conductivity:> 5 μs/cm
RFQMagnetic Flow Meters

Features

  • Battery-powered, with a long battery life.
  • Suitable media: For conductive liquids and slurries, such as tap water, sewage,
  • Measurement is unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
  • No obstructive flow components in the measuring tube, no pressure loss, and low requirements for straight pipe sections;
  • Multiple options for sensor lining and electrode materials;
  • The converter adopts a novel excitation method, resulting in low power consumption, stable zero point, and high accuracy.
  • The converter can be integrated with the sensor or used separately.
  • Suitable for seawater, pulp, mud, and chemical solutions containing acids, alkalis, and salts.
  • Suitable applications: For outdoor, field, and locations where power supply is inconvenient.
Magnetic Flowmeter Technology

Technical Specifications of Battery Powered Electromagnetic Flow Meter

Measuring MediumConductive liquids and slurries
TypePipeline-type electromagnetic flowmeters
Structure TypeIntegrated type, separate type
Nominal Diameter DN (mm)6、8、10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、350、400、450、500、600、700、800、900、1000、1200、1400、1600、1800、3000
Rated PressureDN6～DN50DN65DN80DN100~DN150DN200~DN900DN1000~DN2000
≤4.0MPa≤1.6MPa≤4.0MPa≤1.6MPa≤1.0MPa≤0.6MPa
Special pressure: Customizable
Flow Rate Range(0~15)m/s
Medium Conductivity① Factory default: >30 μS/cm;
② Optional low conductivity type: 5 μS/cm to 30 μS/cm
Flow Meter Assembly0.5 accuracy class (DN10~DN1000), 1.0 accuracy class (DN6~DN8);
1.0 accuracy class (DN1100~DN1400), 1.5 accuracy class (>DN1400);
0.25-0.3 accuracy class (customized, DN10~DN150)
Accuracy Class
Operating Ambient Temperature-20℃~+60℃
Lining Material and Operating TemperatureChloroprene rubber (CR)-20℃~+65℃
Polyurethane (PU)-20℃~+65℃
Polytetrafluoroethylene (PTFE)-40℃~+120℃
Perfluoroethylene propylene (F46 or FEP)-40℃~+180℃
Soluble polytetrafluoroethylene (PFA)-100℃~+180℃
Ceramics0℃~+150℃，0~＋250℃Customizable
Electrode Material316L, Hastelloy (HB, HC), Tantalum (Ta), Titanium (Ti), Platinum (Pt), Tungsten Carbide (WC), Ceramic
Electrode TypeFixed, Scraper, Removable
Number of ElectrodesStandard configuration: 3 electrodes (2 measuring electrodes + 1 grounding electrode), interface diameter configurable
Connection Flange StandardComplies with national standard GB9119 (customizable according to user requirements)
Connection Flange MaterialCarbon steel (standard), stainless steel (optional)
Grounding Ring MaterialDN15~DN2000: 304 stainless steel, 316 stainless steel, PVC grounding ring + grounding electrode
Housing MaterialCarbon steel (standard), stainless steel (optional)
Power Supply(110~240)VAC, 50Hz/60Hz; 24VDC±10%; Battery powered (3.6VDC)
Power Consumption≤15VA
Output Signal(4~20)mA current output, frequency output and pulse equivalent output
Optional Communication ProtocolsModbus RTU communication protocol (RS485), supports standard Modbus RTU communication protocol, HART protocol, GPRS
Electrical InterfaceM20×1.5
Protection ClassIntegrated type: IP65;
Split type: ① Sensor IP67, converter IP65; ② Sensor IP68 (fully potted), converter IP65; ③ Sensor IP68 (fully potted), converter IP67 (battery powered only)
Wiring Length (Split Type)Standard 10-meter cable, the cable between the converter and the sensor generally does not exceed 30m
Explosion-proof MarkingIntrinsically safe + explosion-proof type: Ex db ia[ia Ga] mb ⅡC T4 Gb
Flow DirectionForward, reverse
Constant Current Load≤750Ω
Storage Temperature-40℃~+65℃
Relative Humidity5%~95%
Alarm (Normally Open)Empty pipe, excitation, upper and lower limits

Flow Rate – Flow Volume Reference Table

Nominal
Diameter
(mm)		V=0.1m/s Qmax=m3/hV=0.3m/s Qmax=m3/hV=0.5m/s Qmax=m3/hV=1 m/s Qmax=m3/hV=2 m/s Qmax=m3/hV=3 m/s Qmax=m3/hV=5 m/s Qmax=m3/hV=7 m/s Qmax=m3/hV=10 m/s Qmax=m3/h
60.010.030.050.10180.20360.30540.50890.71251.018
80.0180.0540.090480.1810.36190.54290.90481.26671.8096
100.0280.080.141370.28270.56550.84821.41371.962.8274
150.0640.190.318090.63621.27231.90853.18094.456.3617
200.1130.340.565491.1312.26193.39295.65497.9111.3097
250.2380.530.8842.38214.76427.14638.8412.3917.6715
320.290.871.4482.95.798.6914.4820.2728.95
400.4521.362.261954.52399.047813.571722.619531.6745.2389
500.7072.123.534297.068614.137221.205835.342949.4870.6858
651.1953.585.9729511.94623.891835.837759.729583.62119.459
801.815.439.0477918.095636.191154.286790.4779126.67180.956
1002.8278.4814.137228.27456.548784.823141.372197.92282.743
1254.41713.2522.0892544.177588.3575132.535220.8925309.25441.7875
1506.36219.0931.808663.617127.235190.852318.086445.32636.173
20011.3133.9356.5487113.097226.195339.292565.487791.71130.973
25017.67153.0188.3573176.715353.429530.144883.5731236.971767.146
30025.44776.34127.2345254.469508.938763.4071272.3451781.292544.69
35034.636103.91173.1803346.361692.7211039.0821731.8032424.523463.606
40045.239135.72226.1947452.389904.7791357.1682261.9473166.764523.893
45057.256171.78286.2776572.5551145.1111717.6662862.7764007.8855725.553
50070.686212.06353.4292706.8581413.7172120.5753534.2924948.027068.584
600100.79305.37508.9381017.8762035.7523053.6285089.387125.310178.76
700138.54415.62692.72121385.4422770.8854156.3276927.2129697.813854.42
800180.96542.88904.77871809.5573619.1155428.6729047.78712667.218095.57
900229.02687.061145.1112290.2214580.4426870.66311451.1116031.422902.21
1000282.74848.221413.7172827.4335654.8678482.314137.1719791.828274.33
1200407.151221.52053.7524071.5048143.00812214.5120357.5228500.540715.04
1400554.181662.52770.8855541.76911083.5416625.3127708.8538792.455417.69
1600723.822171.53619.1157238.2314476.4621714.6936191.1550667.672382.3
1800916.092748.34580.4429169.88418321.7727482.6545804.4264126.291608.84
200011313392.95654.86711309.7322619.4733929.256548.6779168.1113097.3

Note:
① The flow rate/velocity range of V=0.5 m/s to V=5 m/s in the table is the recommended range for the flow meter, and the measurement accuracy is optimal within this recommended flow rate/velocity range.
② The factory default conventional flow rate is (0.5~5) m/s; lower flow rates (0.3~5) m/s are available upon request.

Battery powered electromagnetic flow meter converter

Featured Applications

The power supply options for lithium battery powered electromagnetic flow meters include:

  • First power supply option: Built-in 3.6V battery
  • Second power supply option: 3.6V + 220VAC dual power supply (85VAC~265VAC) (split type only)
  • Third power supply option: 3.6V + 24VDC dual power supply (9VDC~32VDC)

Battery powered electromagnetic flow meters can be widely used in locations without a power supply, such as urban water supply, water conservancy irrigation, and sewage treatment industries.

  • Specifically designed for applications where power supply is inconvenient or unstable.
  • Measurement of water flow in water intake and supply networks: Can be installed in any location.
  • Agricultural irrigation: Saves water and improves irrigation efficiency.

Wireless Communication Network Setup

The battery powered converters can utilize a base station-based wireless communication network system. A communication base station is established in the regional center, with a coverage radius of 1000 meters. Each electromagnetic converter communicates with the base station via short-range communication (SRD mode), using the 928 MHz open frequency band (US standard). The base station communicates with the management computer via a GPRS or CDMA cellular network.

Alternatively, the battery powered converters can also communicate directly with the management computer via a GPRS or CDMA cellular network (see the communication manual for details on GPRS communication).

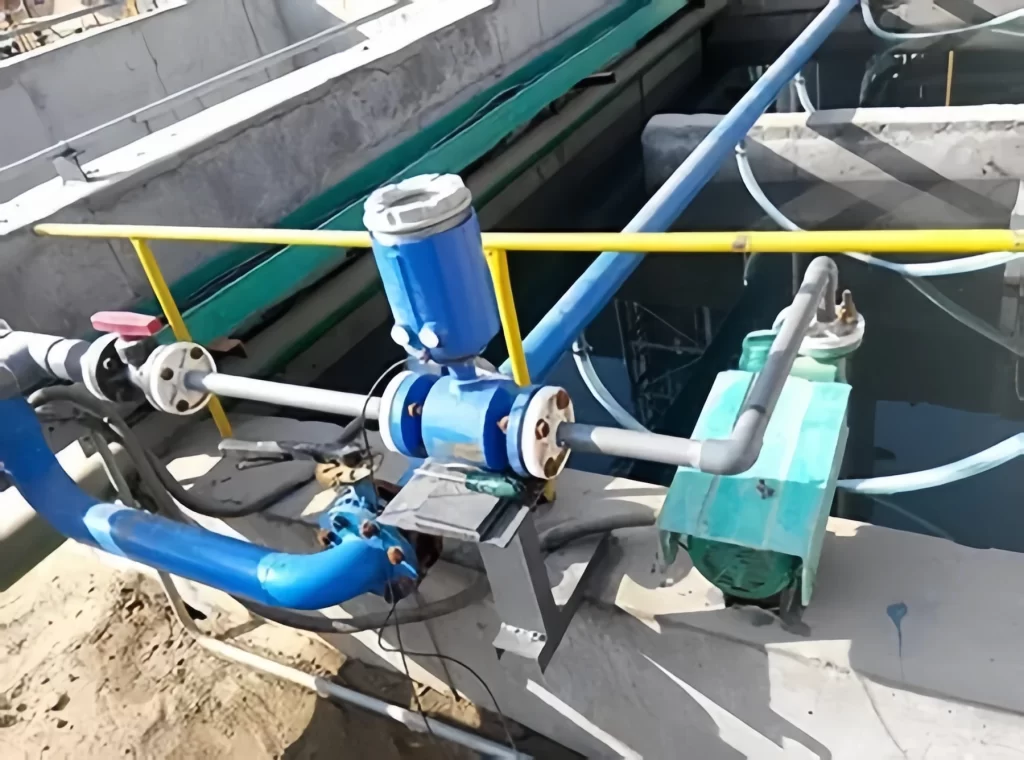

Battery powered electromagnetic flow meter installation
