Pressurized air is used for multiple purposes in engineering. And air pressure sensors offer measurement and control of these important pressure levels.
Digital Air Pressure Sensors are among the most successfully commercialized micro-devices. They are designed to electronically detect air, gas, or liquid pressure changes for monitoring or regulation.
We’ll explore the core functionality, types, applications, and benefits of digital air pressure sensors in this extensive article.
Key Characteristics of Digital Air Pressure Sensor
- Accurate air pressure measurement
- Digital communication protocols
- Built-in signal processing
- Compact and lightweight design
- Often temperature compensated and calibrated
Digital Air Pressure Sensors Working Principle
Digital pressure sensors use pressure sensors that convert pressure to an equivalent electronic signal. These are digital communication protocols that allow two-way communication between the device and a host or other device. Different types of pressure sensors are suitable for digital gauges. Piezoresistive Sensing, Capacitive Sensing, MEMS Technology (Microelectromechanical Systems) are the examples of them.
Among the above mentioned pressure sensors, a piezoresistive pressure sensor consists of a diaphragm equipped with piezoresistive elements. The pressure of the medium causes the diaphragm to deflect.
This deflection causes a change in the cross-sectional area of the piezoresistive elements. That in turn changes the material’s electrical resistance creating a voltage difference.
Air Pressure Sensor Digital Output: What Does It Mean?
The air pressure sensor digital output cites how the sensor communicates the measured pressure value in a machine-readable digital format.
This digital signal is not affected by electrical noise, which makes it much more reliable over long distances compared to analog signals.
Common Digital Output Protocols:
- I²C (Inter-Integrated Circuit)
- SPI (Serial Peripheral Interface)
- UART (Universal Asynchronous Receiver-Transmitter)
- PWM (Pulse Width Modulation)
- RS485-Modbus RTU
- IO-Link

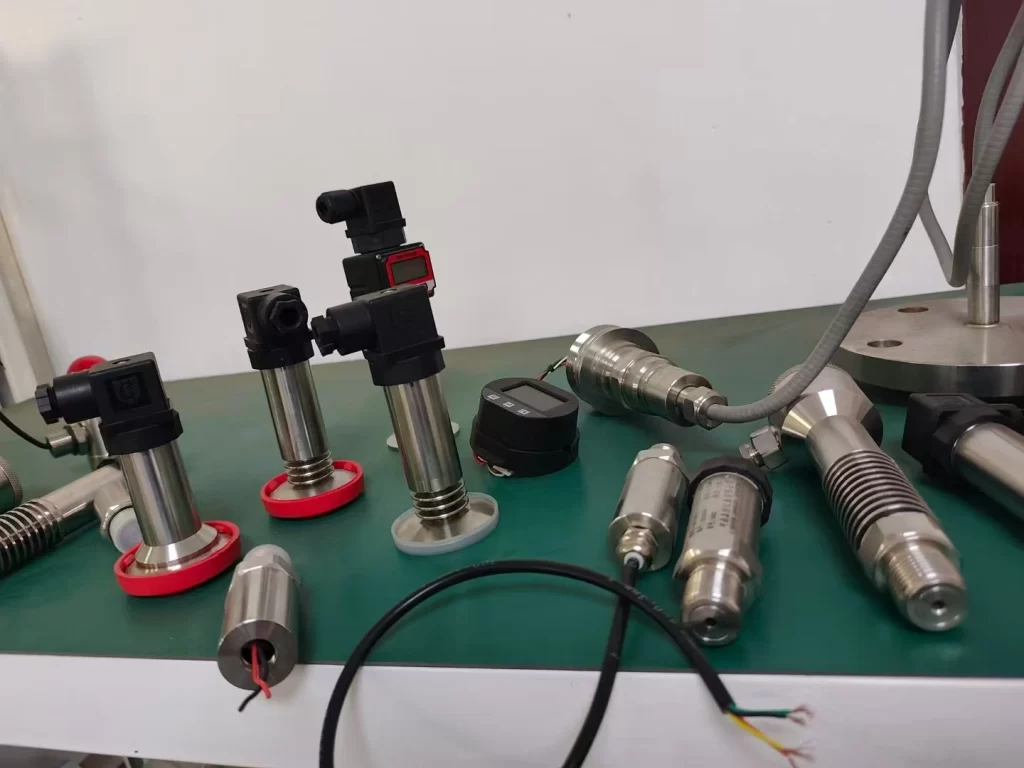

Featured Digital Air Pressure Sensors
Benefits of Using a Digital Air Pressure Sensor
- High Accuracy and Stability
Digital sensors often come pre-calibrated and compensated for temperature, ensuring reliable and stable readings across different environmental conditions. - Noise Immunity
Thanks to the digital signal output, there’s reduced risk of signal degradation due to electrical interference or long cable runs. - Compact Integration
With digital outputs, fewer external components are needed, making these sensors perfect for integration in compact electronic designs. - Ease of Use
No need to deal with complex analog signal conditioning. Digital communication simplifies the process of data acquisition and processing. - Multi-Parameter Measurement
Some advanced sensors not only provide pressure readings but also include temperature and altitude data in the same digital output.
Selecting the Right Digital Air Pressure Sensor: Key Factors
- Pressure Range
- Output Protocol
- Accuracy and Resolution
- Size and Form Factor
- Power Consumption
- Environmental Ratings
Top Manufacturers and Models of Digital Air Pressure Sensor
- Bosch Sensortec – Known for compact MEMS-based digital pressure sensors like BMP280 and BMP388
- Honeywell – Offers high-precision digital pressure sensors for industrial and medical use
- TE Connectivity – Provides digital barometric and gauge pressure sensors
- Sino-Inst – Features a wide range of digital output sensors for automotive and HVAC
- Sensirion – Specializes in low-power digital sensors for consumer and medical applications
More Pressure Measurement Solutions
- Everything You Need To Know About Electronic Pressure Transducers
- Negative Pressure-Vacuum Flow Meters
- How To Calculate Pressure From Flow Rate And Vice Versa
- Customized Case: High Temperature and High Pressure Pressure Measurement -100MPa-700℃
- Guide for High Pressure Flow Meters – Industrial Liquid & Gas Measurement
- Featured Gauge Pressure Transmitters for Industrial Process Pressure Measurement
- What Are Diaphragm Seal Systems in Pressure Measurement? and Types
- RS485 Pressure Sensors
The digital air pressure sensor is a faultfinding tool for accurate, real-time air pressure monitoring in modern technology. With its digital output, it offers unmatched reliableness, noise immunity, and easiness of integration.
Apprehension of the various sensor types, output protocols, and applications will help you make the best pick for your specific needs. As the world moves toward smarter, connected devices, the role of digital air pressure sensors will only grow in importance.
Sino-Inst offers a comprehensive range of industrial grade digital air pressure sensors. Our sales team is always at customer’s service helping them in selecting the best digital air pressure sensors.
