Thermowells are important components in all temperature measurement applications. They can be installed and used with thermocouples, thermal resistors, bimetal thermometers, etc. Thermowells can separate corrosive, high-temperature, high-pressure, and large-flow media from temperature sensors. At the same time, users can also replace sensors during work.

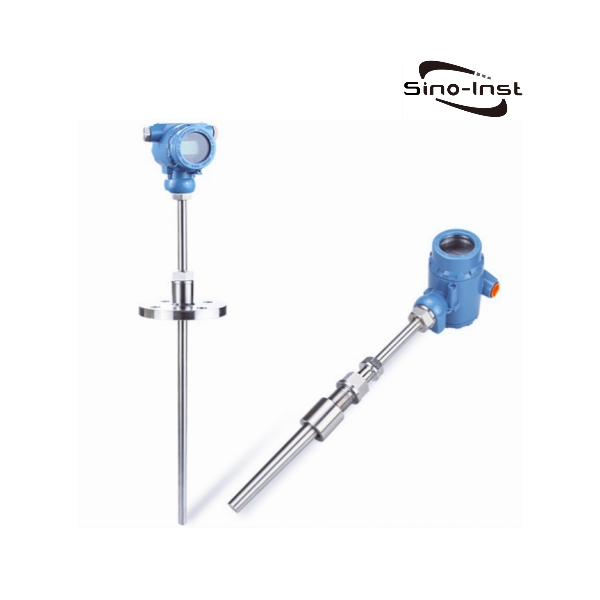

The Thermowells we supply at Sino-Inst are available in a variety of styles and materials to meet various application requirements. Usually, casing is mainly divided into welded type, threaded type and flange type.
Thermowells Material Choice
| Material | Temperature of use | Features and uses |
| 1Cr18Ni9Ti | -200~800℃ | Has high temperature corrosion resistance and is usually used as general heat-resistant steel; |
| 304 | -200~800℃ | Low carbon content, good intergranular corrosion resistance, usually used as general heat-resistant steel; |
| 316 | -200~750℃ | Low carbon content, good resistance to intergranular corrosion, used as corrosion-resistant steel; |
| 316L | -200~750℃ | Ultra-low carbon content, good resistance to intergranular corrosion, used as corrosion-resistant steel; |
| Monel | -100~700℃ | Nickel alloy has good intergranular corrosion resistance and is suitable for use in corrosion-resistant occasions such as strong sulfuric acid; |
| Hastelly C-276 | -100~700℃ | It has excellent intergranular corrosion resistance and is used as corrosion-resistant steel; |
| Inconel600 | -100~1000℃ | Nickel-chromium iron alloy has excellent high-temperature oxidation resistance and is usually used as heat-resistant steel; |
| 310S | -200~1000℃ | It has high temperature oxidation resistance and corrosion resistance, and is usually used as heat-resistant steel; |
| GH3030 | 0~1100℃ | Nickel-based high-temperature alloy steel has excellent oxidation resistance and corrosion resistance, and is usually used as heat-resistant steel; |
| GH3039 | 0~1300℃ | Nickel-based high-temperature alloy steel has excellent oxidation resistance and corrosion resistance, and is usually used as heat-resistant steel; |
| High alumina | 0~1300℃ | Industrial ceramic pipe, with excellent oxidation resistance and corrosion resistance; |
| Corundum | 0~1600℃ | Industrial ceramic pipe, with excellent oxidation resistance and corrosion resistance; |
| 3YC52 | 0~1300℃ | High-temperature alloy, with excellent oxidation resistance, corrosion resistance, mechanical properties, and suitable for high-temperature places; |
| Molybdenum disilicide | 0~1600℃ | It has excellent oxidation resistance, corrosion resistance, good mechanical properties, and is suitable for high temperature places; |
| PTFE | -150~+300℃ | It is resistant to corrosion by almost all organic solutions. Generally used as corrosion-resistant pipe; |
| Note:For other materials,please consult customer service! | ||
Order Guide
| TF | Thermocouple,thermal resistance,bimetallic thermometer installation sleeve | ||||||
| 10 | Flange connection | Connection method | |||||
| 15 | Threaded connection | ||||||
| 20 | Welded type | ||||||
| — | See external dimensions | structural style | |||||
| S | 304 | Sleeve material | |||||
| L | 316L | ||||||
| S25 | 2520 | ||||||
| GH30 | GH3030 | ||||||
| GH39 | GH3039 | ||||||
| F | Outside lining PTFE | ||||||
| FJ | PTFE Sintered PTFE | ||||||
| PM | Spray wear-resistant type | ||||||
| NM | Welding wear-resistant type | ||||||
| T | Agreement ordering | ||||||
| TF 10—A S (Example of Selection) | |||||||
| Note:The connection method of PTFE lining or sintered PTFE can only be flange connection | |||||||
All Types of Thermowells
| Model | TF10-A | TF10-B | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| E | φ33.5mm | φ26.5mm | ||||||
| d | φ22mm | φ19mm | ||||||
| d0 | φ7mm | φ7mm | ||||||
| U | 95mm | 145mm | 195mm | 245mm | 345mm | 445mm | 545mm | |
| L | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 600mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | 50m/S | ≤38Mpa | ||||||
| N: The connecting thread can be produced according to the sensor connection method or customer requirements! | ||||||||
| D: Flange size is based on customer requirements! | ||||||||
| It can also be produced according to the drawings provided by the customer! | ||||||||
| Mode l | TF10-C | TF10-D | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| E | @41.5mm | φ38mm | ||||||
| d | φ36mm | φ28mm | ||||||
| d0 | φ7mm | φ7mm | ||||||
| U | 95mm | 145mm | 195mm | 245mm | 345mm | 445mm | 545mm | |
| L | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 600mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | 50m/S | ≤38Mpa | ||||||
| N: The connecting thread can be produced according to the sensor connection method or customer requirements! | ||||||||
| D: Flange size is based on customer requirements! | ||||||||
| It can also be produced according to the drawings provided by the customer! | ||||||||

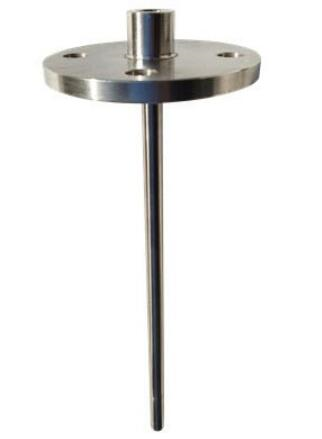

| Model | TF10-E | IF10-F | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| E | – | – | ||||||
| d | φ36mm | φ28mm | ||||||
| d0 | – | – | ||||||
| U | 95mm | 145mm | 195mm | 245mm | 295mm | 345mm | 395mm | |
| L | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | 20m/S | ≤10Mpa | ||||||
| N: The connecting thread can be produced according to the sensor connection method or customer requirements! | ||||||||
| D: Flange size is based on customer requirements! | ||||||||
| It can also be produced according to the drawings provided by the customer! | ||||||||
| Model | TF10-G | TF10-H | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| E | φ30mm | φ25mm | ||||||
| d | φ25mm | φ21mm | ||||||
| d0 | φ9mm | φ9mm | ||||||
| U | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | |
| L | 230mm | 280mm | 330mm | 380mm | 430mm | 480mm | 530mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | 80m/S | ≤38Mpa | ||||||
| N: The connecting thread can be produced according to the sensor connection method or customer requirements! | ||||||||
| D: Flange size is based on customer requirements! | ||||||||
| It can also be produced according to the drawings provided by the customer! | ||||||||
| Model | TF15-A | TF15-B | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| E | 1″NPT | 3/4″NPT | ||||||
| D | φ25.4mm | φ22mm | ||||||
| d | φ19mm | φ16mm | ||||||
| d0 | φ7mm | φ7mm | ||||||
| SW | 34mm | 34mm | ||||||
| U | 60mm | 110mm | 160mm | 210mm | 260mm | 310mm | 360mm | |
| L | 150mm | 200mm | 250mm | 300mm | 400mm | 450mm | 500mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | ≤10m/S | ≤5Mpa | ||||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! It can also be produced according to the drawings provided by the customer! | ||||||||
| Mode l | TF15-C | TF15-D | ||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||
| E | M33X2、G1″、1″NPT | G3/4″、3/4″NPT | ||
| D | φ22mm | φ19mm | ||
| d | φ19mm | φ16mm | ||
| d0 | φ7mm | φ7mm | ||
| SW | 34mm | 34mm | ||
| U | 160mm | 210mm | 260mm | 360mm |
| L | 250mm | 300mm | 400mm | 500mm |
| U/mm | Medium flow rate | Nominal pressure | ||
| ≤260mm | ≤10m/S | ≤5Mpa | ||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||
| Model | TF15-E | TF15-F | ||
| N | M20X1.5、1/2″”NPT | M20X1.5、1/2″NPT | ||
| E | M33X2、G1*、1″NPT | G3/4*、3/4″NPT | ||
| D | φ27mm | φ19mm | ||
| d | φ19mm | φ16mm | ||
| d0 | 7mm | φ7mm | ||
| SW | 34mm | 34mm | ||
| U | 160mm | 210mm | 260mm | 360mm |
| L | 250mm | 300mm | 400mm | 500mm |
| U/mm | Medium flow rate | Nominal pressure | ||
| <260mm | ≤10m/S | <5Mpa | ||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||
| Model | TF15-G | TF15-H | ||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||
| E | M60X3 | 2″NPT | ||
| D | φ28mm | φ28mm | ||
| d | φ16mm | φ16mm | ||
| d0 | φ7mm | φ7mm | ||
| SW | 66mm | 66mm | ||
| U | 230mm | 430mm | 630mm | 1130mm |
| L | 260mm | 460mm | 660mm | 1160mm |
| U/mm | Medium flow rate | Nominal pressure | ||
| ≤260mm | ≤18m/S(≤80m/S) | <30Mpa | ||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||
| Model | TF15-I | TF15-J | |||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | |||||
| E | 1″NPT | 3/4″NPT | |||||
| d | φ28mm | φ22mm | |||||
| d0 | φ7mm | φ7mm | |||||
| SW | 34mm | 34mm | |||||
| U | 60mm | 85mm | 10mm | 160mm | 210mm | 260mm | 360mm |
| L | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| U/mm | Medium flow rate | Nominal pressure | |||||
| ≤260mm | ≤5m/S | ≤10Mpa | |||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | |||||||
| Model | TF15-K | TF15-L | |||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | |||||||
| E | 1″NPT | M27X2 | |||||||
| d | φ19mm | 16 | |||||||
| d0 | φ7mm | — | |||||||
| SW | 34mm | 34 | |||||||
| U | 60mm | 110mm | 160mm | 210mm | 95mm | 145mm | 195mm | 245mm | |
| L | 150mm | 200mm | 250mm | 300mm | 150mm | 200mm | 250mm | 300mm | |
| I/mm | Medium flow rate | Nominal pressure | Medium flow rate | Nominal pressure | |||||
| ≤260mm | ≤5m/S | ≤10Mpa | ≤5m/S | ≤10Mpa | |||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | |||||||||
| Mode l | IF15-M | TF15-N | |||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | |||||
| E | G3/4″、3/4 “NPT | M33X2、G1″、1″NPT | |||||
| d | φ20mm | φ20mm | |||||
| d0 | φ7mm | φ7mm | |||||
| SW | 34mm | 34mm | |||||
| U | 60mm | 85mm | 110mm | 160mm | 210mm | 260mm | 360mm |
| L | 100mm | 125mm | 660mm | 200mm | 250mm | 300mm | 400mm |
| U/mm | Medium flow rate | Nominal pressure | |||||
| ≤260mm | ≤10m/S | ≤5Mpa | |||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | |||||||
| Model | TF20-A | TF20-B | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| φ | φ33.5mm | φ26.5mm | ||||||
| d | φ22mm | φ19mm | ||||||
| d0 | φ7mm | φ7mm | ||||||
| SW | 34mm | —— | ||||||
| U | 95mm | 145mm | 195mm | 245mm | 345mm | 445mm | 545mm | |
| L | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 600mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | ≤80m/S | ≤38Mpa | ||||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||||||
| Model | TF20-C | IF20-D | ||||||
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT | ||||||
| φ | φ41.5mm | φ36mm | ||||||
| d | φ36mm | φ28mm | ||||||
| d0 | φ7mm | φ7mm | ||||||
| SW | —— | |||||||
| U | 95mm | 145mm | 195mm | 245mm | 345mm | 445mm | 545mm | |
| L | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 600mm | |
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | ≤80m/S | ≤38Mpa | ||||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||||||
| Model | TF20-E | TF20-F |
| N | M20X1.5、1/2″NPT | M20X1.5、1/2″NPT |
| φ | φ38mm | φ38mm |
| d | φ20mm | φ13mm |
| d0 | φ7mm | φ7mm |
| SW | — | — |
| U | 100mm | |
| L | 250mm | 300mm |
| U/mm | Medium flow rate | Nominal pressure |
| ≤260mm | ≤80m/S | ≤38Mpa |
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||
| Model | TF20-G | TF20-H |
| N | M20X1.5、1/2″NPT | |
| φ | φ62mm | |
| d | φ33.5mm | |
| d0 | φ7mm | |
| SW | – | |
| U | 250mm | |
| L | 300mm | |
| U/mm | Medium flow rate | Nominal pressure |
| ≤250mm | ≤80m/S | ≤38Mpa |
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||
| Model | TF20-I | TF20-J |
| N | M20X1.5、1/2″NPT | |
| φ | φ62mm | |
| d | φ16mm | |
| d0 | φ7mm | φ7mm |
| SW | 32mm | |
| U | 300mm | |
| L | 250mm | |
| J/mm | Medium flow rate | Nominal pressure |
| ≤260mm | ≤100m/S | ≤38Mpa |
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||
| Model | TF20-K | |||||||
| N | M20X1.5、1/2″NPT | |||||||
| φ | φ38mm | |||||||
| d | φ21mm | |||||||
| d0 | φ7mm | |||||||
| SW | — | |||||||
| U | 50mm | 100mm | 150mm | |||||
| L | 150mm | 200mm | 250mm | 300mm | 350mm | |||
| U/mm | Medium flow rate | Nominal pressure | ||||||
| ≤260mm | ≤80m/S | ≤38Mpa | ||||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||||||
| Mdel | TF20-L | |||||||
| N | M20X1.5、1/2″NPT | |||||||
| φ | φ42mm | |||||||
| d | φ18mm | |||||||
| d0 | φ7mm | |||||||
| SW | —— | |||||||
| U | 50mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | |
| L | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | |
| J/mm | Medium flow rate | Nominal pressure | ||||||
| <260mm | ≤80m/S | ≤38Mpa | ||||||
| N/E: The connecting thread can be produced according to the sensor connection method or customer requirements! We can also produce according to the drawings provided by customers! | ||||||||
| Model | M | D | D1 | D2 | d | h | H |

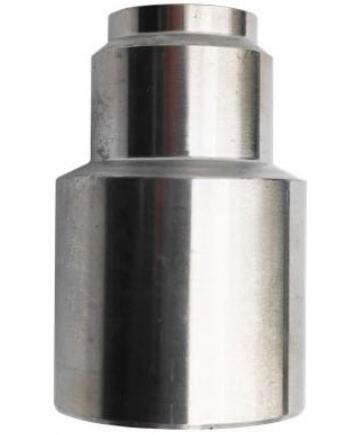

| TF48A | M16X1.5 | φ36mm | φ18mm | φ14mm | φ7mm | 27mm | 80mm |
| TF48B | M20X1.5 | φ40mm | φ18mm | φ14mm | φ7mm | 27mm | 60mm |
| TF48C | M27X2 | φ47mm | φ28mm | φ22mm | φ17mm | 32mm | 60mm |
| TF48D | M33X2 | φ55mm | φ36mm | φ30mm | φ21mm | 34mm | 120mm |
| TF48E | G1/2”、1/2″NPT | φ39mm | φ27mm | φ21mm | φ16mm | 35mm | 60mm 120mm |
| TF48F | G3/4″、3/4″NPT | φ47mm | φ31mm | φ25mm | φ20mm | 40mm | |
| TF48G | G1″、1″NPT | φ47mm | φ41mm | φ35mm | φ30mm | 45mm | |
| Other requirements can be customized according to the parameters or drawings provided by the customer | |||||||
| Model | M | D | D1 | D2 | d | h | H |
| TF49A | M16X1.5 | φ36mm | φ18mm | φ14mm | φ7mm | 27mm | 80mm |
| TF49B | M20X1.5 | φ40mm | φ18mm | φ14mm | φ7mm | 27mm | 60mm |
| TF49C | M27X2 | φ47mm | φ28mm | φ22mm | φ17mm | 32mm | 60mm |
| TF49D | M33X2 | φ55mm | φ36mm | φ30mm | φ21mm | 34mm | 120mm |
| TF49E | G1/2″、1/2″NPT | φ39mm | φ27mm | φ21mm | φ16mm | 35mm | 60mm 120mm |
| TF49F | G3/4″、3/4″NPT | φ47mm | φ31mm | φ25mm | φ20mm | 40mm | |
| TF49G | G1″、1″NPT | φ47mm | φ41mm | φ35mm | φ30mm | 45mm | |
| Other requirements can be customized according to the parameters or drawings provided by the customer | |||||||
| Model | M | D | D1 | d | h | H |
| TF50A | M16X1.5 | φ36mm | φ18mm | φ7mm | 27mm | 80mm |
| TF50B | M20X1.5 | φ40mm | φ18mm | φ7mm | 27mm | 60mm |
| TF50C | M27X2 | φ47mm | φ28mm | φ17mm | 32mm | 60mm |
| TF50D | M33X2 | φ55mm | φ36mm | φ21mm | 34mm | 120mm |
| TF50E | G1/2”、1/2’NPT | φ39mm | φ27mm | φ16mm | 35mm | 60mm 120mm |
| TF50F | G3/4、3/4NPT | φ47mm | φ31mm | φ20mm | 40mm | |
| TF50G | G1、1″NPT | φ47mm | φ41mm | φ30mm | 45mm | |
| Other requirements can be customized according to the parameters or drawings provided by the customer | ||||||
| Model | DN | φ-t | D0 | d0 | A | L |
| TFK15-57-10 | DN10mm | φ57X3.5mm | 17mm | 10mm | 50mm | 230mm |
| TFK15-57-15 | DN15mm | φ57X3.5mm | 22mm | 15mm | 50mm | 230mm |
| TFK15-57-20 | DN20mm | φ57X3.5mm | 27mm | 20mm | 50mm | 230mm |
| TFK15-57-25 | DN25mm | φ57X3.5mm | 34mm | 25mm | 50mm | 230mm |
| TFK15-57-32 | DN32mm | φ57X3.5mm | 42mm | 32mm | 50mm | 230mm |
| TFK15-57-40 | DN40mm | φ57X3.5mm | 48mm | 40mm | 50mm | 230mm |
| TFK15-89-15 | DN15mm | φ89X4.5mm | 22mm | 13mm | 60mm | 250mm |
| TFK15-89-20 | DN20mm | φ89X4.5mm | 27mm | 18mm | 60mm | 250mm |
| TFK15-89-25 | DN25mm | φ89X4.5mm | 34mm | 25mm | 60mm | 250mm |
| TFK15-89-32 | DN32mm | φ89X4.5mm | 42mm | 33mm | 60mm | 250mm |
| TFK15-89-40 | DN40mm | φ89X4.5mm | 48mm | 39mm | 60mm | 250mm |
| TFK15-89-50 | DN50mm | φ89X4.5mm | 60mm | 51mm | 60mm | 250mm |
| TFK15-89-70 | DN65mm | φ89X4.5mm | 73mm | 64mm | 60mm | 250mm |
| Material options include 20 #steel.304 stainless steel.316L.etc | ||||||
TF10-E-F

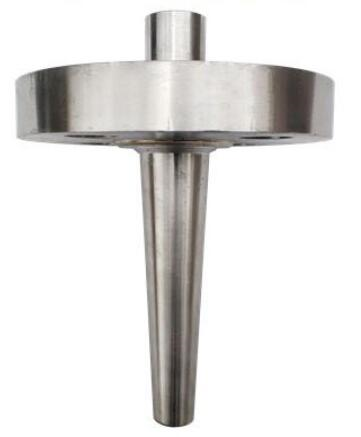

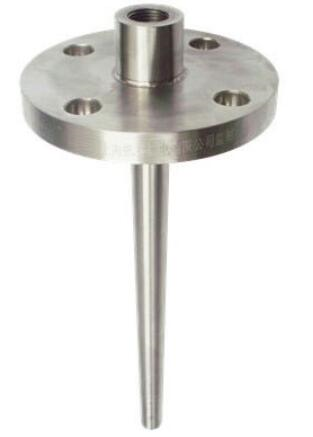

TF10-G-H
TF10-G-H-2

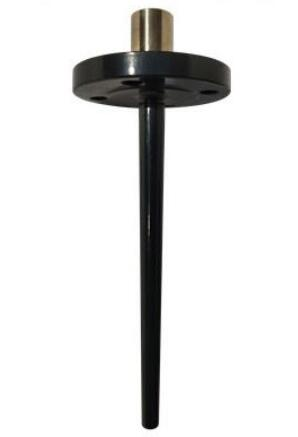

F10-G, H sintered PTFE series
TF15-E-F

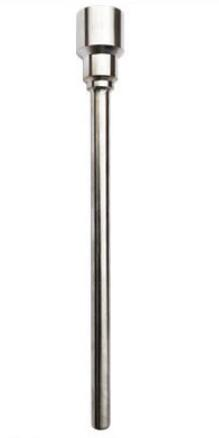

F20C-D
F20-L

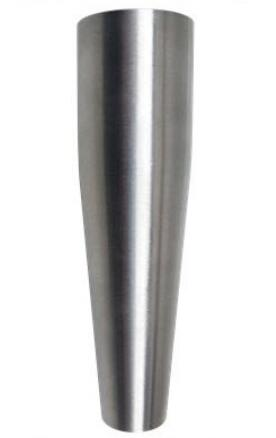

F20-E-F
TF48C carbon steel
TF48C stainless steel

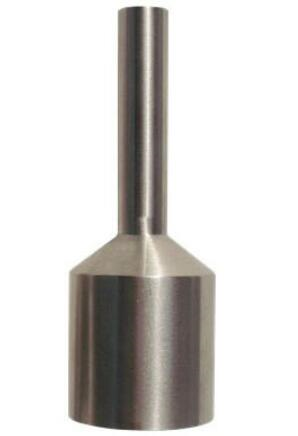

TF48 Customized

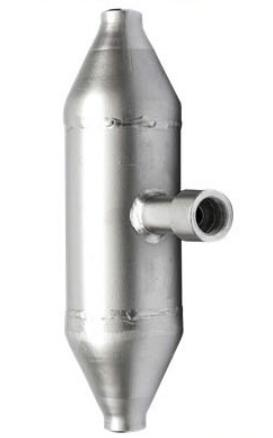

Thermometer expansion tube
More Featured Temperature Sensors and Measurement Solutions
- Liquid Nitrogen Pressure Measurement – Pipeline and Tank
- High Temperature Pressure Transducers|800℃~1200℃
- Fluid Pressure Sensors for Industrial Liquids Pressure Measurement
- Industrial HART Pressure Transmitters and DP Transmitters
- Top 3 Flow Meters for PVC Pipes
- Industrial Pressure Transmitters: 7 Sensor Principles and 4 Main Types!
- Pipe Flow vs Pressure – Relationship & Calculate Tools
- Top 4 Types of Pipeline Flow Meters-DN6~DN1000~DN6000
- Flow Measurement 101
- Pressure Transducer Troubleshooting: Expert Insights & Tips
- Fluid Pressure Guide: Static Pressure Vs. Dynamic Pressure Vs. Total Pressure
- Steam Pressure Sensor/transducer for Industrial Steam Measurement
- What Is Solvent Flow Meter? Industrial Selection Guide
- What Is a BTU Meter? | BTU Energy Measurement Systems
F10, F15, and F20 series Types of Thermowells are all designed in accordance with IEC international standards, with blind hole processing and high pressure resistance. They are manufactured and installed at the same time as the equipment. Different pressure levels can meet different needs. Can be used with thermocouples, thermal resistors, bimetal thermometers, etc.
TF10, TF15, TF20 series thermocouples, thermal resistors, and bimetal thermometers have a variety of optional installation sleeve connection methods. There are also a variety of materials to choose from. Can be used in almost any place!
The Thermowells supplied by our Sino-Inst support various customizations. There are also a variety of materials to choose from. Can be used in almost any place!
All Types of Thermowells | Selection Parameters
We supply All types of thermowell for thermocouple-thermal resistance-bimetal thermometer. Customized corrosion resistance, high temperature, high pressure and connection size!
Product SKU: Thermowells
Product Brand: Sino-Inst
Product Currency: USD
Product Price: 45
Price Valid Until: 2029-09-09
Product In-Stock: InStock
Editor's Rating:
5
5
