Gas Measurements: Normal Conditions vs Standard Conditions

In gas flow measurement and control, it is crucial to distinguish between Normal Conditions and Standard Conditions. This is primarily because the volume of gas changes with temperature and pressure. Different standards will result in different measured gas values. This is somewhat similar to the difference between “SCFM (Standard CFM) and ACFM (Actual CFM)“.

RFQ

Characteristics of Gas Measurement

Gases are compressible, and their parameters (pressure, temperature, density, volume) interact with each other. For example, the equation of state for a gas studies these relationships in detail.

Gas Temperature:

Temperature changes alter the physical properties of a gas, such as density and viscosity, thus affecting the measurement accuracy of the flow meter. For example, in thermal gas flow meters, temperature changes directly affect the sensor’s thermal conductivity, leading to measurement deviations. If the gas temperature increases, the density usually decreases; at the same volumetric flow rate, the mass flow rate may change, affecting measurement accuracy.

For some high-precision flow meters, temperature compensation devices are typically installed to reduce the impact of temperature changes on measurement accuracy. However, if temperature changes exceed the compensation range, measurement errors may still increase.

Gas Pressure:

Changes in gas pressure also affect gas density and viscosity, thus impacting the flow meter’s measurement results. For example, in high-pressure gas systems, gas density increases with pressure. If the flow meter lacks pressure compensation, the measured flow rate may deviate from the actual value.

Especially in applications with significant pressure fluctuations, such as pneumatic systems or compressed air pipelines, pressure changes can significantly affect the flow meter’s measurement accuracy. Therefore, it is necessary to select a flow meter with pressure compensation capabilities or use an external pressure sensor for compensation.

Therefore, when measuring and controlling gases, we must specify parameters such as gas pressure and temperature. That is, we must clearly define whether it is “standard conditions” or “Normal Conditions”.

What is Standard Conditions?

Standard Conditions: Flow rate under a unified standard.

To avoid fluctuations in gas flow rate caused by environmental changes, the scientific community has proposed a unified standard to quantify flow rate; this is the standard condition.

Standard conditions refer to the flow rate of a gas measured at standard atmospheric pressure (101.325 kPa) and standard temperature (usually 0°C or 25°C, varying depending on different industry standards).

Characteristics of Standard Condition Flow Rate:

Measured using standard atmospheric pressure and temperature;
Under this environment, gas density and mass can be accurately calculated;
Standard condition flow rate has clear standardization significance, helping users ignore temperature and pressure variations and focus on gas flow rate.

Advantages of Standard Condition Flow Rate:

Because gas flow rates measured under standard conditions are standardized, they can be easily used for comparison, calculation, and quality control in industrial applications. Especially in mass flow control, standard condition flow rate is one of the most commonly used parameters.

With standard condition flow rate, users can more accurately calculate gas mass and perform efficient gas mixing, reactions, and transportation. Suitable for applications requiring standardized data: For example, in chemical reactions, biopharmaceuticals, environmental monitoring, and other fields, gas mass flow rates require stable and standardized data, making standard condition flow rate a crucial reference.

What is Normal Conditions?

In practical applications, the volume of a gas is affected by environmental factors, especially temperature and pressure. Because the spaces between gas molecules are relatively large, changes in temperature and pressure cause changes in the movement of gas molecules, thus altering the gas volume.

Normal Conditions Flow (or Operating Conditions Flow) refers to the measured gas flow rate at a specific moment or under actual operating conditions. Specifically, the operating conditions are determined by the current ambient temperature and pressure.

Characteristics of Normal Conditions Flow:

Affected by real-time ambient temperature and pressure; Flow rate measured in actual applications; Corresponds to the volumetric flow rate of the gas under specific operating conditions.

Normal Conditions Flow primarily refers to the real-time measurement and control of gas flow rate in actual production environments. Operating condition flow rate directly reflects the actual gas usage in the production process. In certain specific application scenarios, users are more concerned with the actual performance of gas flow rate under actual operating conditions than with standardized measurement results.

Conversion between Normal Conditions and Standard Conditions

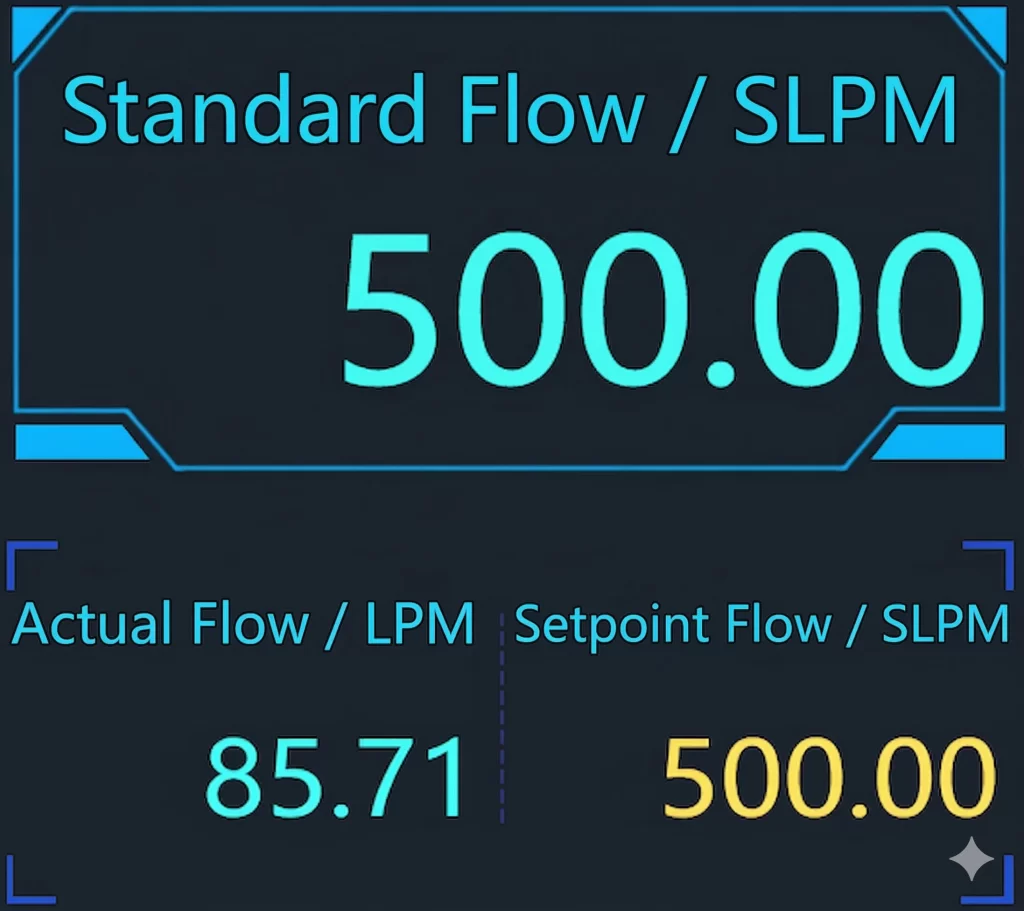

Some flow meters, such as our Sino-Inst thermal gas mass flow meters and mass flow controllers, can simultaneously display both operating and standard flow rates. However, most of the time, we need to convert between operating and standard flow rates.

Based on the gas law: PV=nRT, the conversion formula between operating and standard flow rates is: P1×V1/T1=P2×V2/T2.

Or, you can directly use our converter below.

Featuerd Gas Flow Meters and Solutions

Gas flow measurement under both Normal Conditions and Standard Conditions is important. Understanding their definitions, differences, and conversions can help us better measure and control gas flow. For example, when selecting a flow meter, standard gas flow meters use standard condition flow ranges, while users may only have access to their actual operating parameters. In this case, conversion is essential to select the most suitable gas flow meter.

If you still don’t know how to convert or select a gas flow meter, please feel free to contact our sales engineers!
