10000 psi Pressure Transducer 1/4 NPT
Sino-Inst supplies 10,000 psi pressure transducers, 1/4 NPT threaded mounting and a 1–5 VDC output. It is suitable for measuring the pressure of gases and liquids. 10,000 psi is equivalent to 68.95 MPa or 689.5 Bar.
Benefits
Technical Specifications
| Measuring range | 0–10,000 psi |
| Accuracy | 0.1% FS, 0.25% FS, 0.5% FS (optional) |
| Output | 4–20 mA, 0/1–5/10 V, 0.5–4.5 V, RS485 (optional) |
| Power supply | 5 VDC, 24 VDC, 9–36 VDC |
| Process connection | G1/4, 1/4 NPT, R1/4, G1/8, G1/2, M20×1.5 (customizable) |
| Electrical connection | M12×1 (4-pin), Large DIN (Hirschmann), Waterproof cable outlet |
| Load capacity | Current output: R = (U – 8 V) / 0.02 A |
| Temperature compensation | -10 to 70°C |
| Operating temperature | -20 to 100°C (High-temperature version customizable up to 400°C) |
| Safe overload | 150% |
| Ultimate overload | 200% |
| Temperature drift | 0.02% FS/°C |
| Long-term stability | 0.2% FS/year |
| Wetted parts | 304, 316L |
| Certifications | CE |

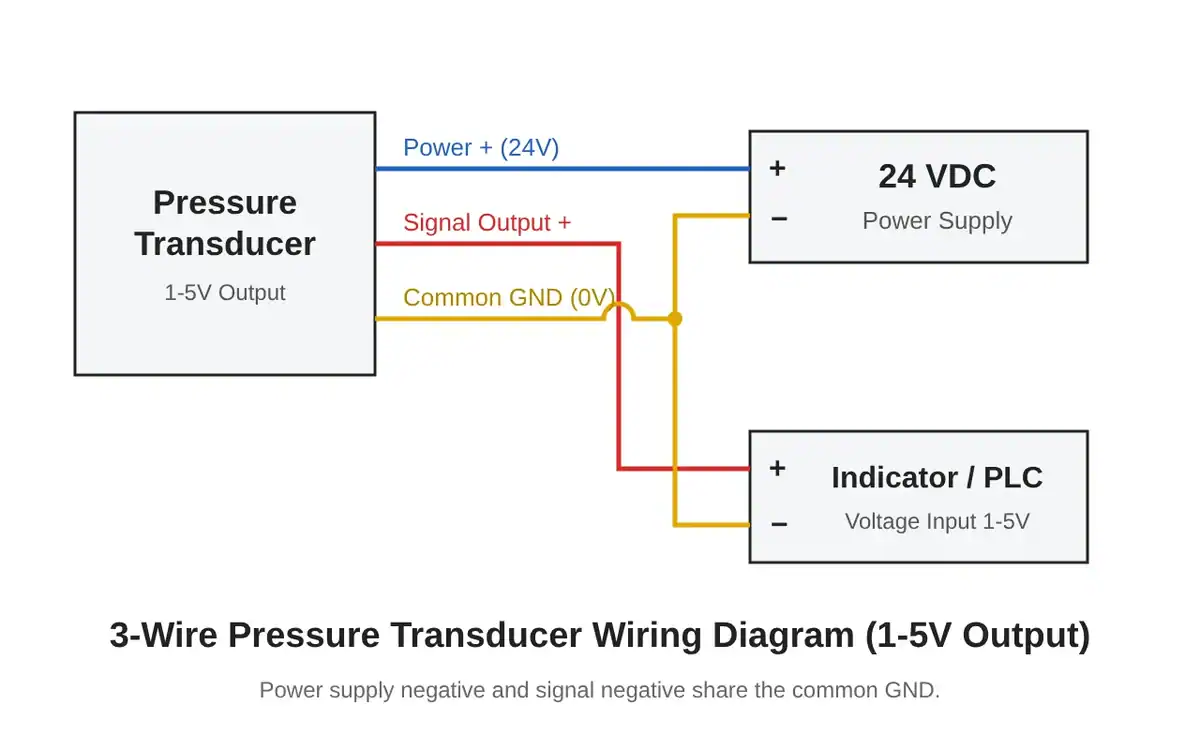

Wiring Diagram
Signal outputs of 0/1–5/10V and 0.5–4.5V utilize a three-wire configuration; please refer to our wiring diagram. If you select the 4–20mA configuration, a two-wire setup is used, whereas RS485 output requires a four-wire setup. Please consult our wiring guide.

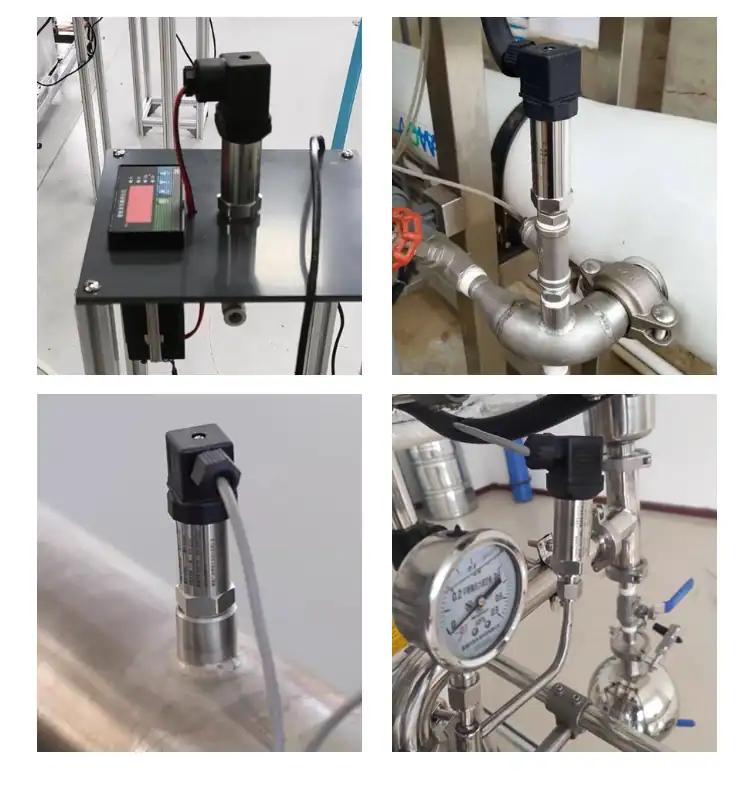

Applications
Our 10,000 psi pressure transducer (1/4 NPT) is primarily used in:
- Hydraulic power units and hydraulic stations;
- Hydraulic presses, injection molding machines, and die-casting machines;
- Hydraulic systems for construction and mining machinery;
- 700-bar class hydraulic tools, such as hydraulic cylinders, jacks, and bolt tensioners;
- High-pressure water pumps and hydrostatic test benches for pipes, hoses, and valves;
- Pressure testing and calibration equipment.
