Oval Gear Flow Meter for Paint: A Real Case Study

An oval gear flowmeter, also known as a displacement flowmeter, is a type of positive displacement flowmeter and offers the highest accuracy among flow instruments. It is particularly suitable for measuring the flow of highly viscous liquids such as heavy oil, asphalt, paint, diesel, and bunker fuel.

An oval gear flowmeter uses a mechanical measuring element to continuously divide the fluid into individual known volumes. The total flow volume is measured based on the number of times the metering chamber repeatedly fills and drains that volume. Looking for the sensor? View our oval gear flow meter product page →

Why Oval Gear Flow Meter for Paint Measurement?

Paint and coatings run anywhere from 100 cP up to 10,000 cP depending on batch and temperature. Turbine, ultrasonic and magnetic meters all drift or stop working at that viscosity — turbines under-spin, mag meters need conductivity, ultrasonic loses signal in pigment-loaded fluids. An oval gear flow meter is a positive displacement (PD) design: two meshed gears trap a fixed volume of liquid between the gear teeth and the housing, and count how many pockets pass through. Viscosity does not change the pocket size, so the reading stays accurate whether the paint is thinned or at full batch viscosity.

Each full rotation of the gears equals a known volume — typically 0.1 mL to 10 mL per pulse depending on meter size. That gives a native pulse output, which is what paint filling lines actually need: a controller sees “X pulses = Y litres” and closes the fill valve on target. Accuracy sits at ±0.5% of reading, and repeatability is ±0.1%. No flow conditioning, no straight pipe requirement, no drift when the batch changes.

The wetted parts see aromatic solvents (xylene, toluene, MEK), glycol ethers, and pigment-heavy resins every shift. A 316L stainless steel body with PTFE or FKM (Viton) seals handles all of these without swelling or chemical attack. Bearings are tungsten carbide, which resists the abrasive wear from pigment and extender solids. This is the combination that lets one meter run two to three years on a paint line without a rebuild.

Case Study

A customer from Malaysia wanted to measure the flow of paint used in electrostatic spraying. After discussion, we finally confirmed the following parameters:

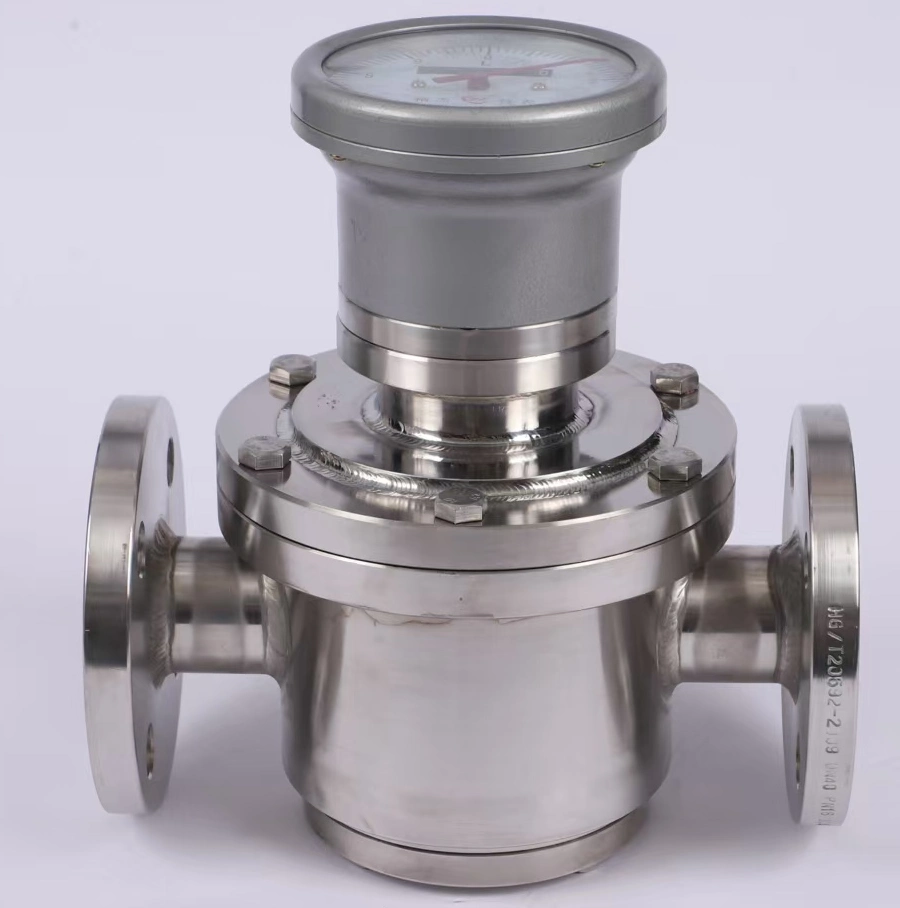

Oval gear flowmeter
Flow range: 160-800 l/h
Accuracy: 0.5%
Medium: electrostatic coating (@2mPa.s)
Maximum temperature: 80°C
Connection: 25A JIS 10K FF flange (maximum pressure: 1.0MPa)
24VDC
Relay switch signal

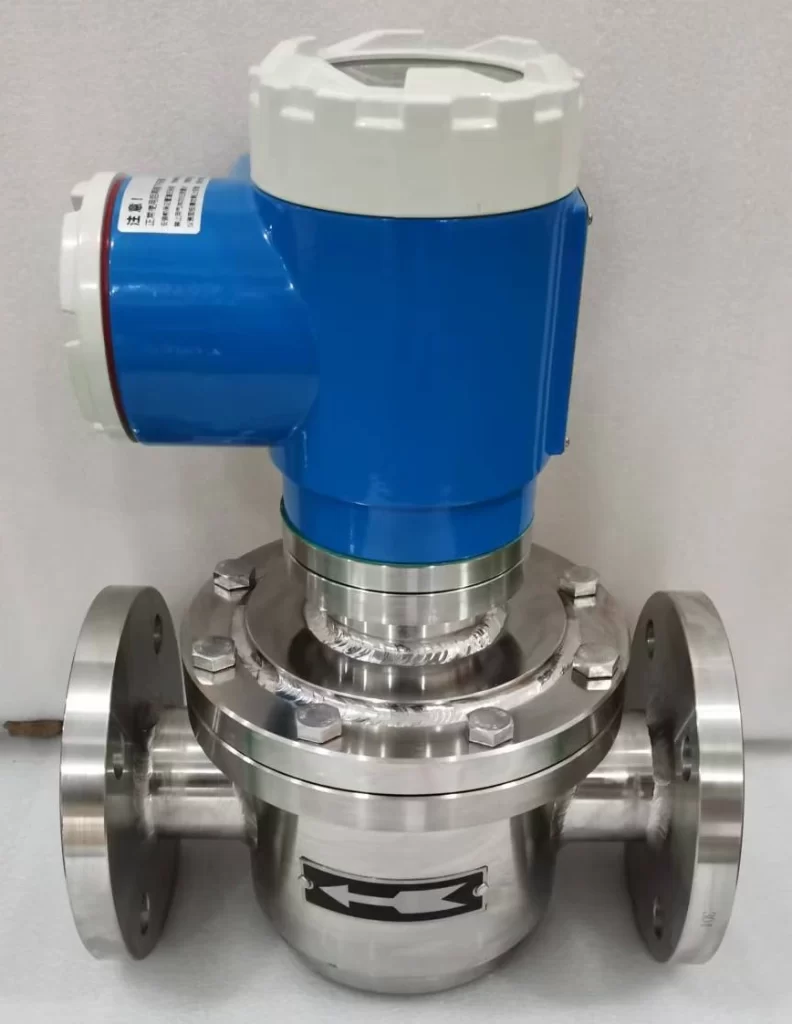

Electronic meter head digital display

This customer requested a customized relay switch signal. For example, if the flow rate is set to 300 L/h, the switch will close when it reaches 300 L/h.

Measurement Principle

An oval gear flowmeter is a type of positive displacement flowmeter used for precise continuous or intermittent flow measurement or instantaneous flow of liquids in pipelines. It is particularly suitable for measuring the flow of high-viscosity media such as heavy oil, polyvinyl alcohol, and resin.

A flowmeter primarily consists of a housing, a counter, an oval gear, and couplings (magnetic and axial). An elliptical gear flowmeter consists of a metering box and a pair of elliptical gears mounted within it. These, along with the upper and lower covers, form a sealed, crescent-shaped cavity (not completely sealed due to the rotation of the gears), which serves as the unit of displacement. When the measured liquid enters the flowmeter through a pipeline, the pressure differential between the inlet and outlet drives the pair of gears to rotate continuously, continuously delivering the liquid measured by the crescent-shaped cavity to the outlet. The product of the number of revolutions of the elliptical gears and four times the displacement per time is the total flow rate of the measured liquid.

The higher the viscosity of the medium, the smaller the leakage through the gap between the gears and the metering cavity. Therefore, the higher the viscosity of the measured medium, the smaller the leakage error, which improves the measurement performance.

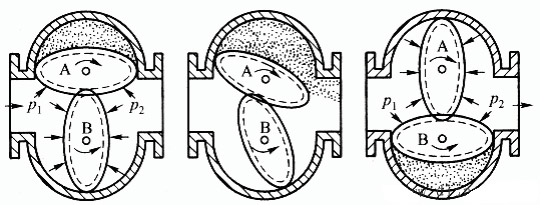

Oval Gear flow meter Measurement Principle

Advantages

High measurement accuracy, wide flow range, and good repeatability;
Uniform helical rotor rotation, low vibration, and long life;
Insensitive to changes in the measured liquid’s viscosity, making it particularly suitable for measuring high-viscosity liquids;
Simple structure and compact dimensions;
Easy installation, requiring no straight pipe section before the meter;
Customizable high-temperature models, up to 250°C;

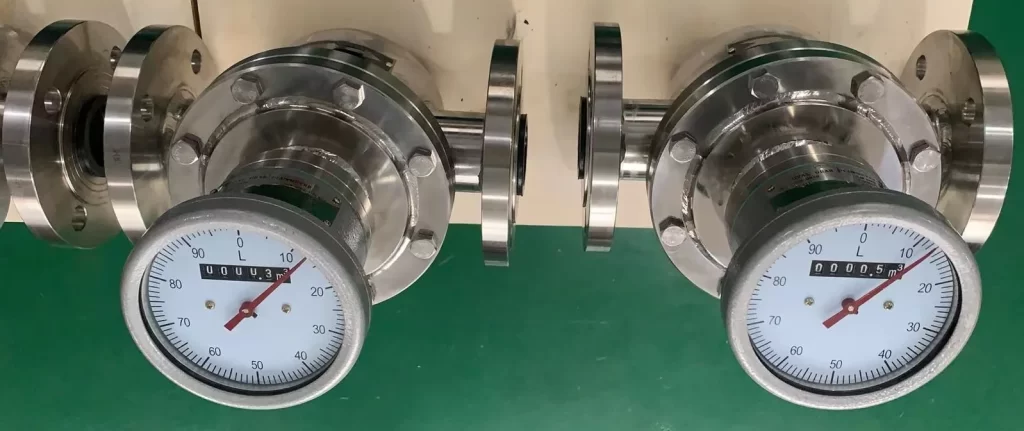

Customizable mechanical pointer display, no power required;

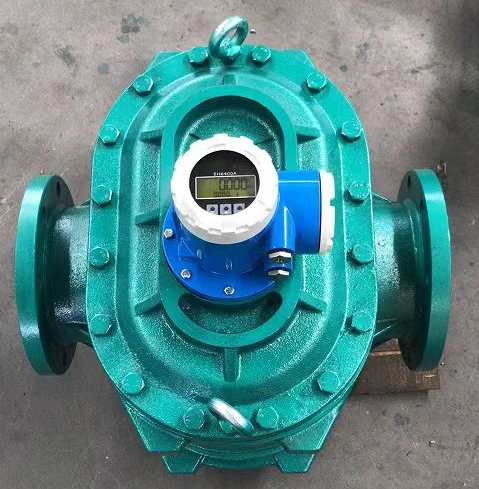

Customizable intelligent digital display, supporting pulse, RS485, and 4-20mA signal outputs;
Available in cast iron, cast steel, and all-stainless steel.

Applications Of Paint Flow Measurement

Automotive Manufacturing: A flow meter is installed at the front end of a robotic or manual spray gun. Based on real-time data on the instantaneous flow rate of the sprayed paint, the flowmeter adjusts the spray gun valve size to ensure uniform coating thickness on the body and components, effectively reducing material waste and rework.

Aerospace: Corrosion-resistant Coriolis flowmeters are used to accurately measure paint flow during the painting process on various areas of aircraft exteriors. These flowmeters are linked to the spray gun control system to adjust output at any time, ensuring that film thickness on curved surfaces and edges meets standards.

Continuous coating processes: A micro-flowmeter is installed at the die inlet, maintaining a real-time closed-loop relationship with an online thickness meter. This ensures consistent coating thickness in both the horizontal and vertical directions of films and foils, reducing raw material consumption.

Electrostatic spray systems: Equipped with a flowmeter for powder or liquid electrostatic spray guns, a PLC reads the flow rate in real time. Based on this flow rate reading, workers adjust the gun distance and voltage, improving the first-pass application rate and spraying efficiency while reducing downtime during color change.

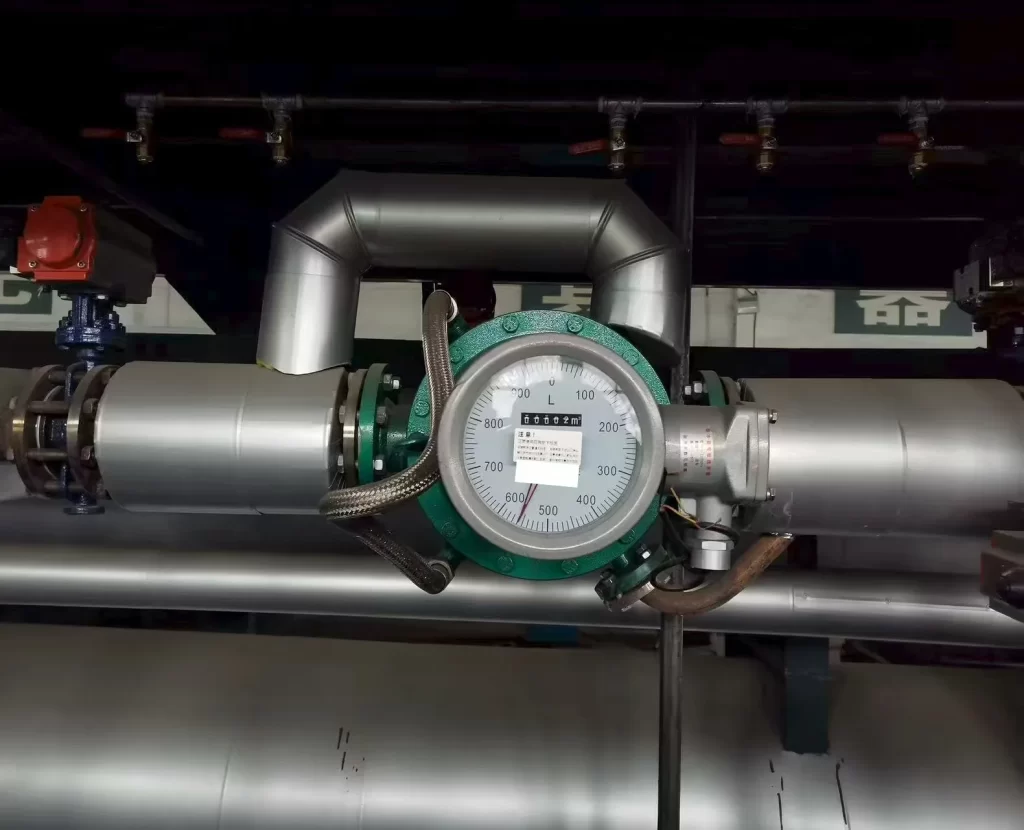

Installation tips for oval gear flow meters in paint lines

An oval gear flow meter should be equipped with a filter; the arrow on both the filter and filter housing should point in the same direction as the flow.
When the measured liquid contains gas, a gas separator should be installed before the flow meter.
Regardless of whether the pipeline is installed vertically or horizontally, the oval gear shaft in the flow meter should be installed horizontally.
If the reading is difficult to see when the oval gear flow meter is correctly installed, the counter can be rotated 180° or 90°.
Before installing a new flow meter, use a bamboo stick to push the gear several times from the outlet. If it does not move, it can be soaked in gasoline.
The throttle valve should be installed at the flow meter inlet, and the on/off valve at the outlet. When using the on/off valve, operate it slowly with pneumatic force; do not open it suddenly.
It is strictly forbidden to pass steam used for cleaning the pipeline through the flow meter.
For continuous use, a bypass pipeline must be added to the flow meter.
Before installing the oval gear flow meter, the pipeline must be flushed. During flushing, a straight pipe section (replacing the oval flow meter location) should be used to prevent welding slag, debris, etc., from entering the flow meter. 10. It is strictly forbidden to calibrate flow meters made of cast iron or cast steel using water.
The flow rate during use must not exceed the technical requirements. The flow meter should ideally operate at 50-80% of its maximum flow rate.
If the liquid being measured is chemically corrosive, a flow meter made of stainless steel or Ocr15Ni12MO2Ti must be selected.

Factors Affecting Oval Gear Flowmeter Accuracy

1. Oval gear flowmeters are suitable for measuring the flow of high-viscosity media, but not for fluids containing solid particles. Gas mixed in the measured liquid can also cause measurement errors.

2. If the flow rate of the measured medium is too low during use, the meter’s leakage error will become significant, and adequate measurement accuracy can no longer be guaranteed. Therefore, our oval gear flowmeters have a minimum operating flow rate limit. Measurement accuracy is guaranteed only when the actual measured flow rate exceeds this lower limit.

3. Furthermore, when using an oval gear flowmeter, it is important to ensure that the temperature of the measured medium does not rise too high. Therefore, oval gear flowmeters must be used within the specified operating temperature range.

4. Furthermore, after long-term use, the internal gears will corrode and wear, affecting measurement accuracy. Therefore, they should be carefully observed and regularly removed for inspection.

More Flowmeters Suitable For Measuring Paint Flow

1. Electromagnetic Flowmeters

Electromagnetic flowmeters measure flow only when the medium is electrically conductive. Generally, water-based paint can meet this requirement. Electromagnetic flowmeters can be customized with custom lining and electrode materials. They are wear-resistant, corrosion-resistant, and tolerant of particulate matter.

2. Circular Gear Flowmeter

Circular gear flowmeters are designed for low flow rates and high viscosity applications. Flow rates can be as low as 0.6 L/h, and high-pressure models up to 40 MPa are available. Using circular gear flowmeters requires the absence of impurities, so installing a filter is generally recommended.

3. Coriolis Mass Flowmeter

Coriolis mass flowmeters offer the highest accuracy, but they also come at a higher cost. They directly measure mass flow and are unaffected by fluctuations in viscosity and density.

Common Questions About Oval Gear Flow Meters for Viscous Fluids

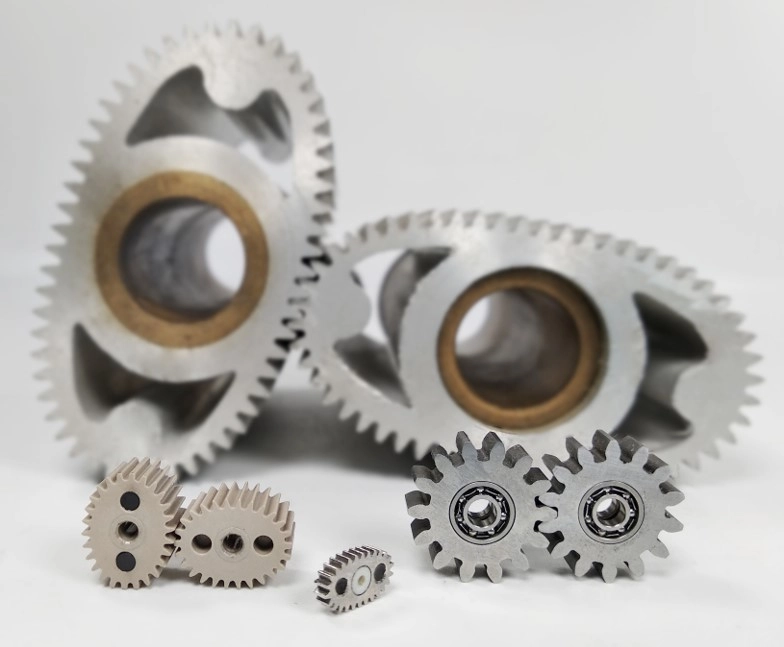

An oval gear flow meter consists of a flow transmitter and a counting mechanism. Adding a heat sink between the transmitter and the counting mechanism creates a high-temperature flow meter. The transmitter consists of a metering chamber housing a pair of oval gear rotors and a sealed coupling. The counting mechanism includes a reduction gear, a regulating mechanism, a counter, and a transmitter.

Within the metering chamber, a crescent-shaped cavity formed by a pair of oval gears and a cover plate serves as the unit of flow measurement. The oval gears rotate due to the pressure difference between the inlet and outlet of the flow meter, continuously conveying liquid through the crescent-shaped cavity to the outlet. The amount of liquid flowing through each revolution is four times that of the crescent-shaped cavity. The sealed coupling transmits the total number of revolutions and the speed of rotation of the oval gears to the counting mechanism or transmitter, thus determining the total amount of liquid and the instantaneous flow rate through the pipeline.

Yes. Oval gear flow meters are suitable for measuring high-viscosity liquid media, especially for monitoring the flow rate of chemical liquids such as paints and coatings. Their structural characteristics can adapt to the high viscosity of paints, ensuring measurement accuracy and stability.

The basic accuracy of an oval gear flow meter is typically ±0.5%R, where R represents the flow meter’s measurement range. This means that under standard operating conditions, its measurement error is within ±0.5% of the measurement range. Standard oval gear flow meters are suitable for applications where high accuracy is not required.

Some specially designed oval gear flow meters can achieve higher accuracy levels, such as ±0.2%R or higher. These high-precision oval gear flow meters are particularly suitable for applications requiring high-precision measurements, such as certain industrial process control or laboratory research.

Summary

Sino-Inst’s oval gear flowmeters offer excellent performance and are suitable for a variety of media, including oils, chemical liquids, and food liquids. They can be customized for high temperatures and high viscosities. They can be customized with stainless steel, cast steel, and cast iron materials. They can also be customized with mechanical pointer displays or intelligent digital displays.

If you have any questions or concerns regarding flow measurement, please contact us and our professional technicians will be happy to answer your questions.
